The recommended land pattern for the V40PW15C-M3/I can be found in the Vishay Intertechnologies' application note AN42172, which provides guidelines for PCB layout and land pattern design.
Proper thermal management is crucial for the V40PW15C-M3/I. Ensure good thermal conductivity by using a thermal pad or thermal interface material, and design the PCB to allow for adequate airflow. The device's thermal resistance (RthJA) is specified in the datasheet.
The maximum allowable voltage derating for the V40PW15C-M3/I is typically 80% of the maximum rated voltage. However, it's recommended to consult with Vishay Intertechnologies' application engineers or refer to the device's reliability report for specific guidance.
While the V40PW15C-M3/I is primarily designed for low-frequency applications, it can be used in high-frequency applications with proper design considerations. Ensure that the PCB layout and component selection minimize parasitic inductance and capacitance, and consult with Vishay Intertechnologies' application engineers for specific guidance.
To ensure the reliability of the V40PW15C-M3/I in a high-temperature environment, follow the recommended operating temperature range, use a suitable thermal management design, and consider using a thermally conductive material for the PCB. Additionally, consult with Vishay Intertechnologies' application engineers for specific guidance on reliability testing and qualification.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
V40PW15C-M3/I Overview

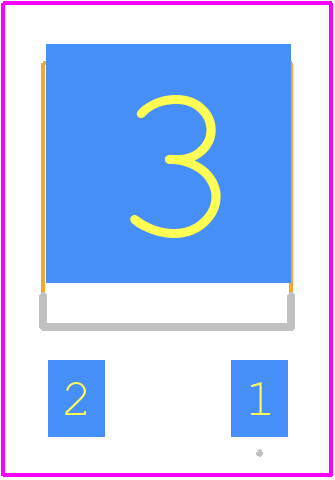

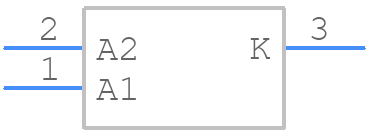

Use the download button to access the V40PW15C-M3/I schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like V40PW,
or try a keyword search, such as Rectifier Diodes
