The maximum operating temperature range for the V48A3V3C264BG2 is -40°C to +100°C, with a derating of 1.5% per °C above 80°C.
Proper thermal management can be achieved by providing adequate airflow, using a heat sink, and ensuring that the module is mounted on a thermally conductive surface. Vicor recommends a minimum airflow of 200 LFM (linear feet per minute) and a maximum junction temperature of 125°C.
Vicor recommends a minimum input capacitance of 100 μF, with a voltage rating of at least 50 V, to ensure stable operation and minimize input ripple.
Yes, the V48A3V3C264BG2 is designed to meet the requirements of high-reliability and military applications. Vicor offers a range of screening options, including burn-in and environmental testing, to ensure the module meets the required standards.
Vicor provides a range of troubleshooting resources, including application notes, FAQs, and technical support. Engineers can also use the module's built-in protection features, such as overvoltage protection and short-circuit protection, to identify and diagnose issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
V48A3V3C264BG2 Overview

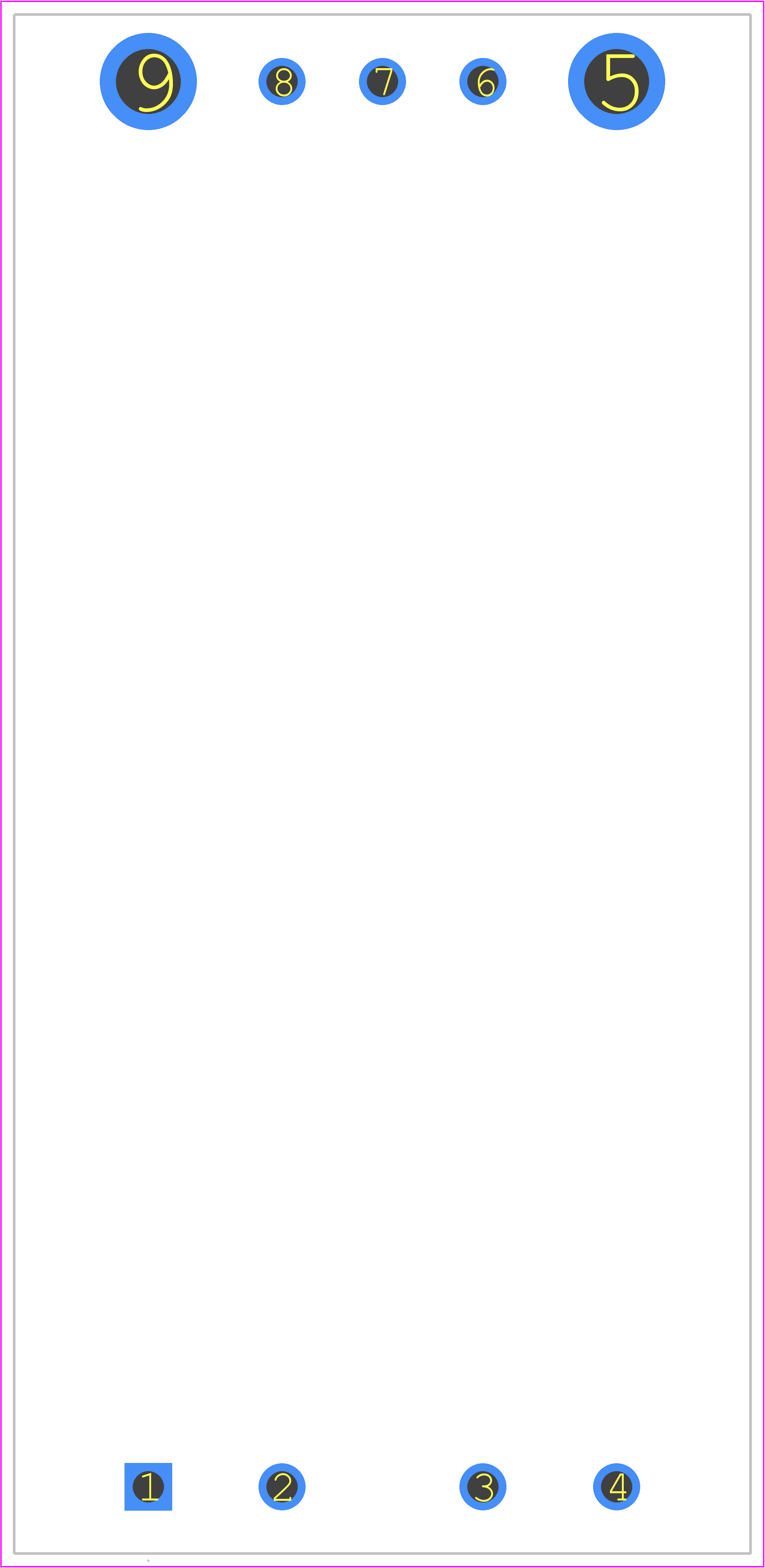

Use the download button to access the V48A3V3C264BG2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V48A3,
or try a keyword search, such as Power Supply Modules
