V48C12T150BG - VICOR

Description: Isolated DC/DC Converters - Through Hole Watts- 150 Vin 48 Vout 12 Grade - T

Download V48C12T150BG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

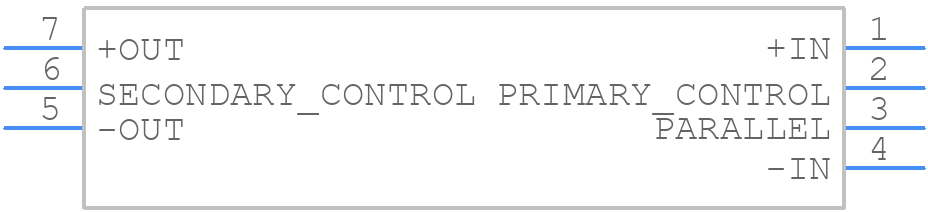

V48C12T150BG - VICOR - PCB symbol
click to zoom
PCB Footprints

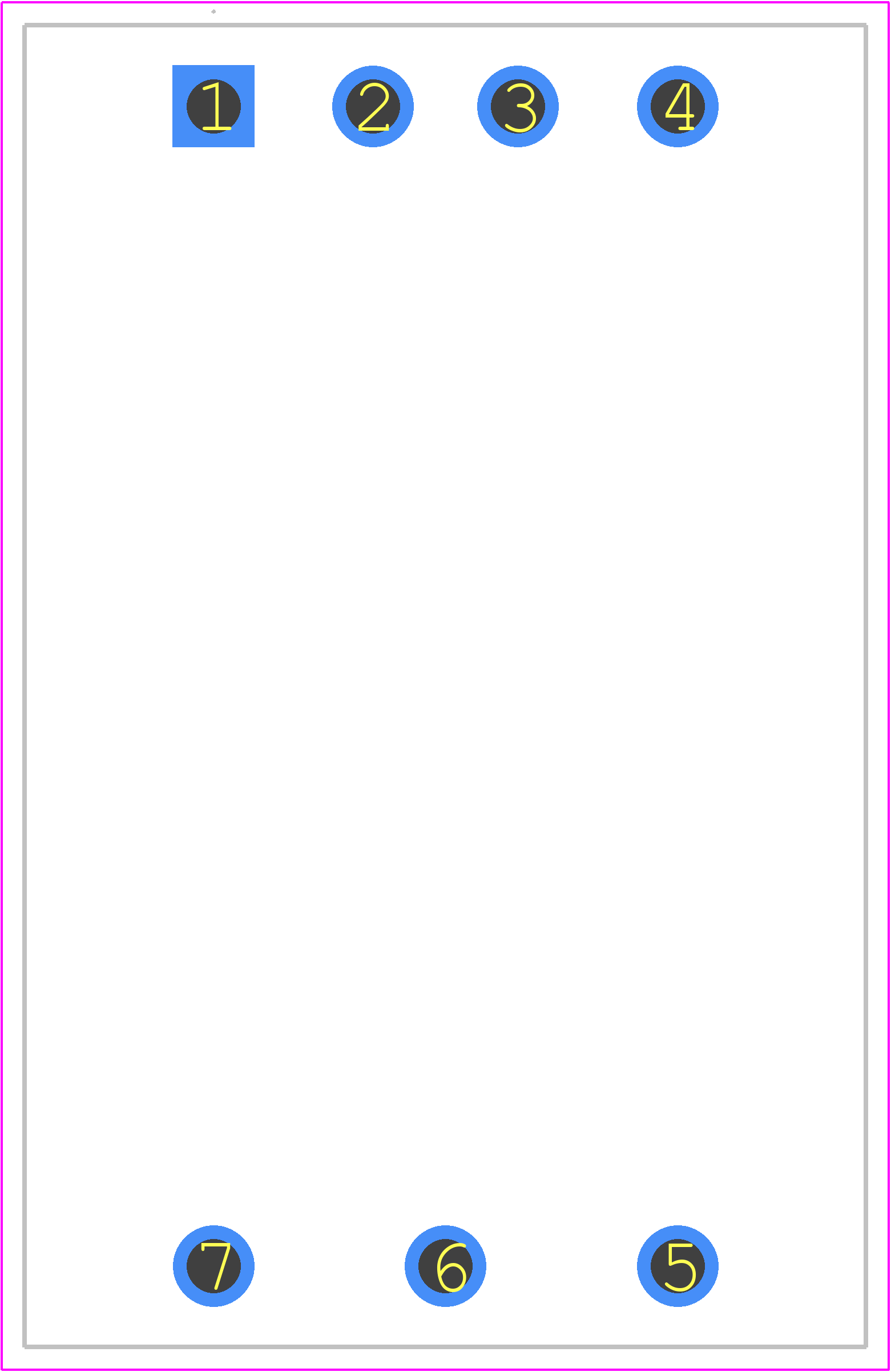

V48C12T150BG - VICOR PCB footprint - Other - Other - V48C12T150BG-1
click to zoom
3D Models
V48C12T150BG - VICOR - 3D model - Other - V48C12T150BG-1
click to zoom

V48C12T150BG Details

  • Manufacturer Part Number:

    V48C12T150BG

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    PACKAGE-7

  • Pin Count:

    7

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    7.3

  • Additional Feature:

    REMOTE SHUTDOWN

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    UL, CSA, TUV

  • Efficiency (Main Output):

    88%

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    36 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-XDFM-P7

  • JESD-609 Code:

    e4

  • Length:

    57.91 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    16.3 A

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    1.2 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    150 W

  • Trim/Adjustable Output:

    YES

  • Width:

    36.83 mm

V48C12T150BG Frequently Asked Questions (FAQs)

  • Vicor recommends a 4-layer PCB with a solid ground plane and a thermal pad connected to a heat sink or a thermal interface material. The datasheet provides a recommended PCB layout and thermal management guidelines.
  • To ensure reliable start-up and shutdown, Vicor recommends a soft-start circuit and a controlled shutdown sequence. The application note AN-104 provides more details on start-up and shutdown considerations.
  • The V48C12T150BG is designed to meet CISPR 22 Class B and FCC Part 15 Class B emissions standards. Vicor recommends following proper PCB layout and shielding techniques, as well as using EMI filters and common-mode chokes to minimize emissions.
  • Yes, the V48C12T150BG is available in a variety of screening options, including JANS, ESCC, and MIL-PRF-38534. Vicor also offers a range of high-reliability and military-grade products that meet specific industry standards.
  • The V48C12T150BG has an operating temperature range of -40°C to +100°C, with derating above 80°C. Vicor recommends following the thermal management guidelines to ensure reliable operation within the specified temperature range.
