Vicor recommends a 4-layer PCB with a solid ground plane and a thermal pad connected to a heat sink or a thermal interface material. The device should be placed in a well-ventilated area, and the PCB should be designed to minimize thermal resistance.
To ensure reliable start-up and operation, Vicor recommends using a soft-start circuit or a ramp-up circuit to limit the inrush current. Additionally, the output filter should be designed to minimize the output voltage overshoot and ringing during start-up.
The maximum allowed input voltage ripple is 10% of the nominal input voltage. Exceeding this limit may affect the module's performance, including reduced efficiency, increased noise, and potential instability.
Yes, the V48C15C150BL can be used in a redundant or parallel configuration, but it requires careful design and implementation to ensure proper operation and fault tolerance. Vicor recommends consulting with their application engineers for guidance on designing a redundant or parallel system.
Vicor recommends using a pi-filter (L-C-L) configuration for input filtering, with a 10uH inductor, 10nF capacitor, and 10uF capacitor. For output filtering, a 10uF capacitor and a 1uH inductor are recommended. However, the actual component values may vary depending on the specific application and requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
V48C15C150BL Overview

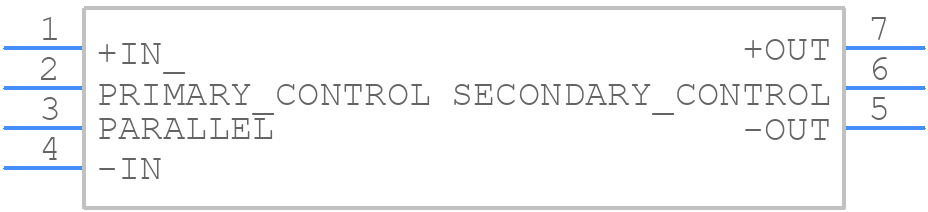

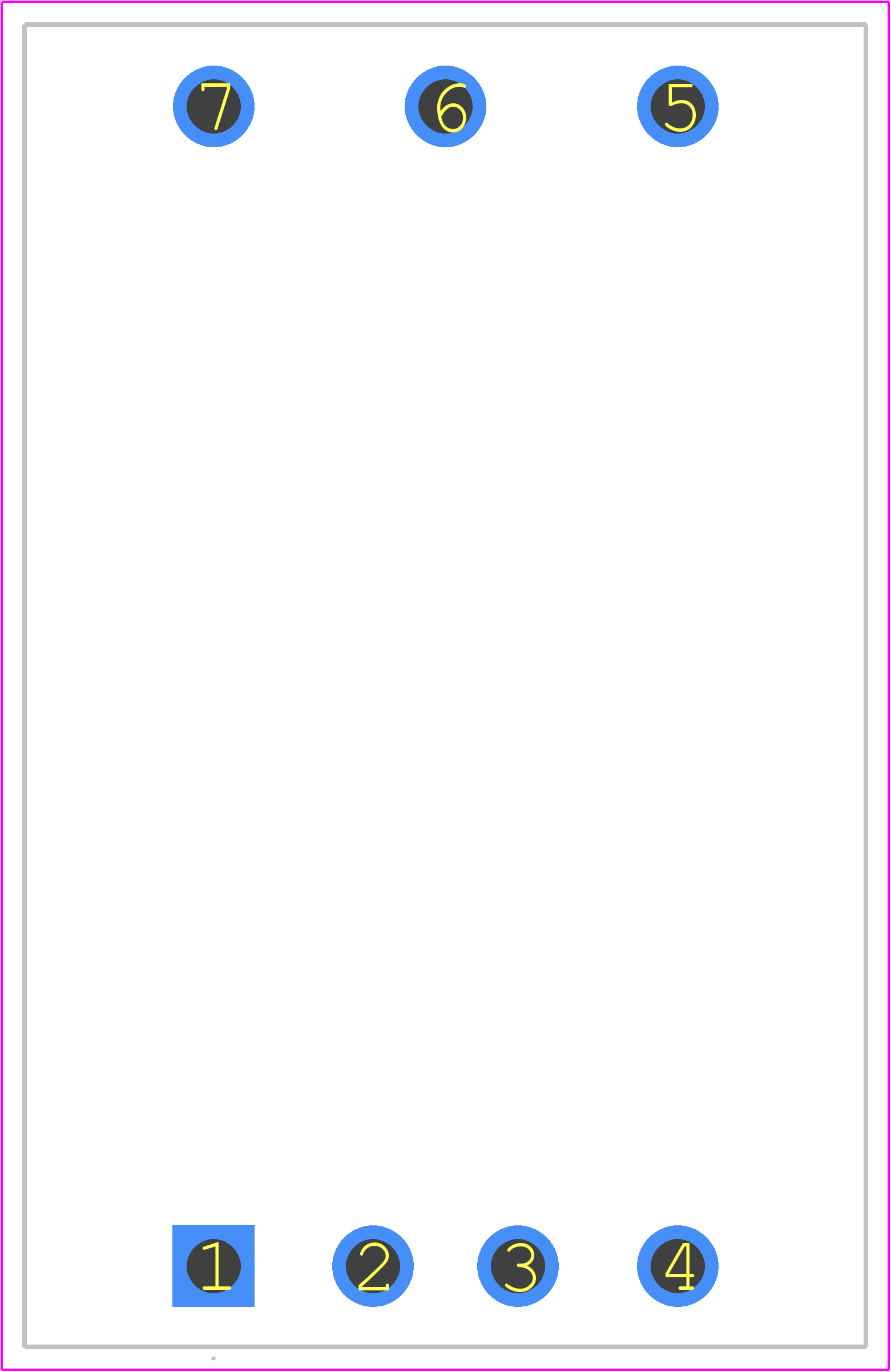

Use the download button to access the V48C15C150BL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V48C1,
or try a keyword search, such as Power Supply Modules
