Vicor recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer to ensure good thermal conductivity. A minimum of 2 oz copper thickness is recommended.
To ensure reliable start-up, Vicor recommends a soft-start circuit to limit the inrush current, and a minimum input voltage of 36V to ensure proper start-up. Additionally, a 10uF ceramic capacitor should be placed close to the VIN pin to filter out noise.
The maximum output capacitance recommended by Vicor is 220uF. Exceeding this value may cause instability or oscillations in the converter.
Vicor recommends using a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit to protect the converter from input voltage transients. A 47uF input capacitor can also help to filter out noise and transients.
The maximum ambient temperature for reliable operation of the V48C24C150BG is 85°C. Operating the converter above this temperature may reduce its reliability and lifespan.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
V48C24C150BG Overview

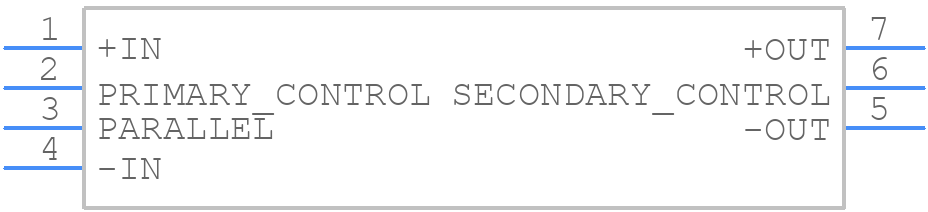

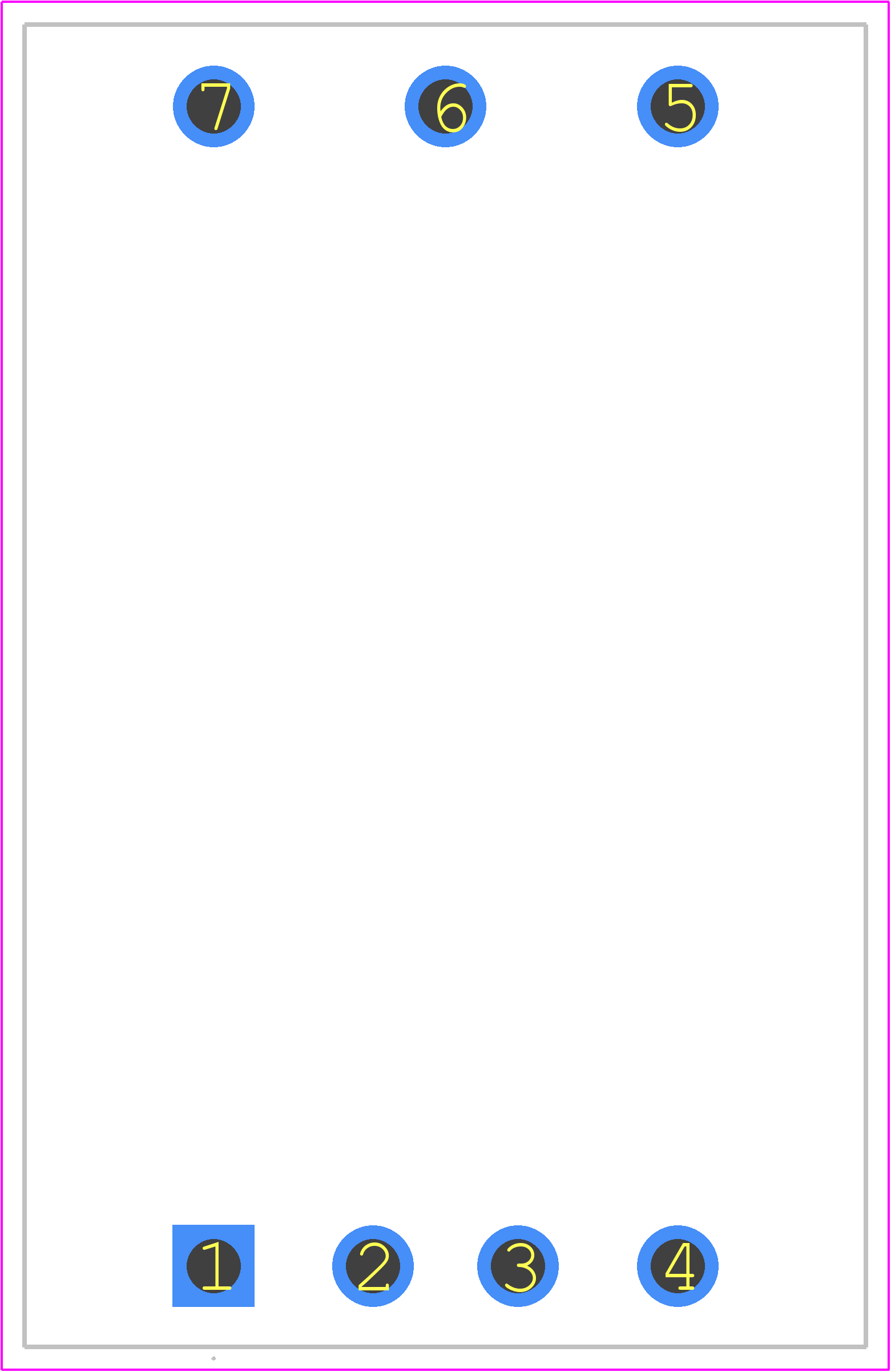

Use the download button to access the V48C24C150BG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V48C2,
or try a keyword search, such as Power Supply Modules
