Part Image

V48C24C150BL - VICOR

Description: Isolated DC/DC Converters

Download V48C24C150BL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

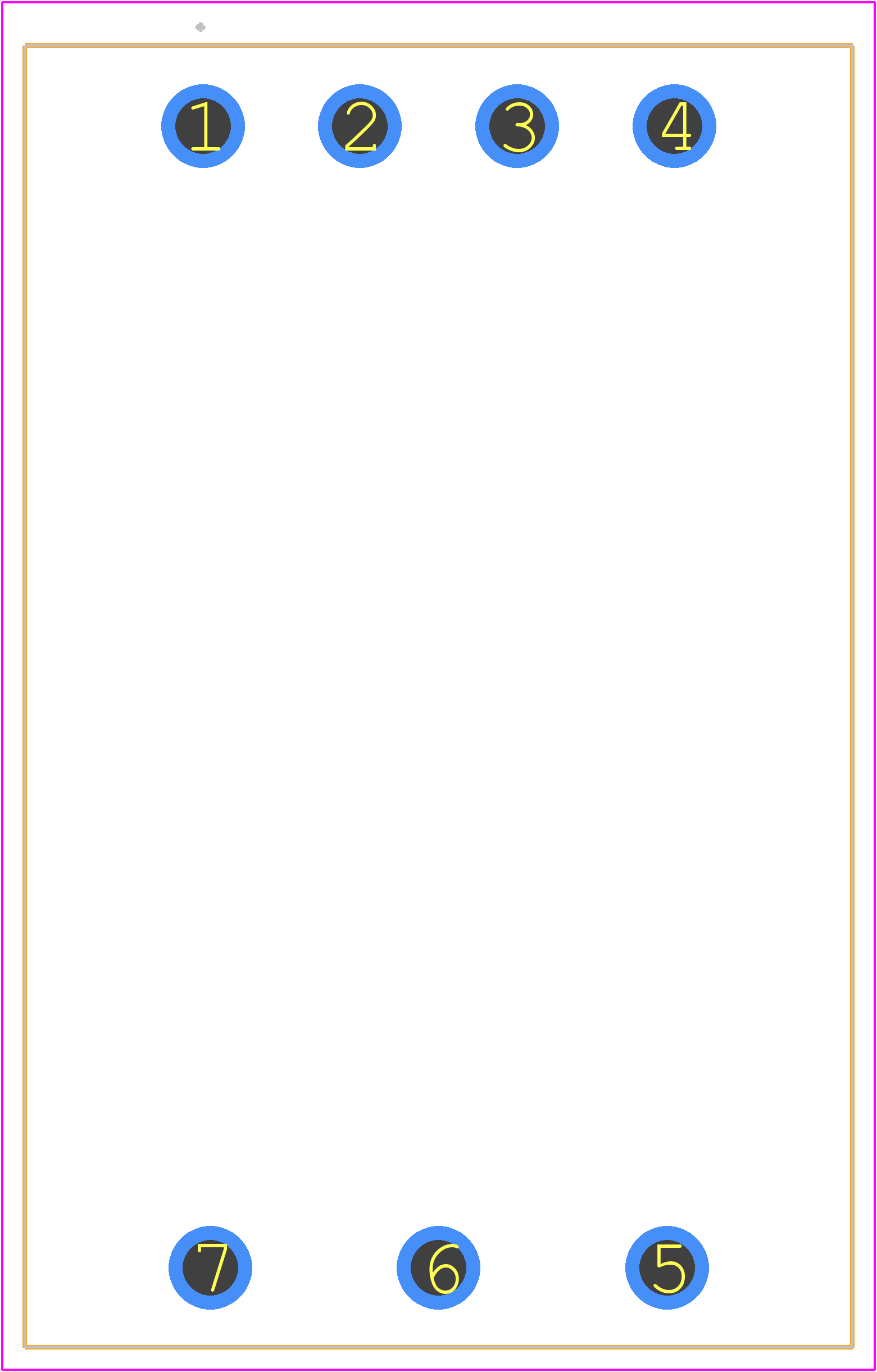

V48C24C150BL - VICOR PCB footprint - Other - Other - V28C12T100BL
click to zoom
3D Models
V48C24C150BL - VICOR  - 3D model - Other - V28C12T100BL
click to zoom

V48C24C150BL Details

  • Manufacturer Part Number:

    V48C24C150BL

  • Pbfree Code:

    No

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    ,

  • Pin Count:

    7

  • Reach Compliance Code:

    Not_compliant

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    5.48

  • Additional Feature:

    REMOTE SHUTDOWN

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    UL, CSA, TUV

  • Efficiency (Main Output):

    88.5%

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    36 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-XDMA-P7

  • JESD-609 Code:

    e0

  • Length:

    57.91 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current-Max:

    8.13 A

  • Output Voltage-Max:

    26.4 V

  • Output Voltage-Min:

    2.4 V

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    15.95 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    150 W

  • Trim/Adjustable Output:

    YES

  • Width:

    36.83 mm

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

V48C24C150BL Overview

Use the download button to access the V48C24C150BL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V48C2, or try a keyword search, such as Power Supply Modules
