Vicor provides a reference design guide and thermal management guidelines in their application notes and whitepapers. It's recommended to follow these guidelines to ensure optimal performance and thermal management.
Vicor recommends using a soft-start circuit and a controlled shutdown sequence to prevent voltage overshoots and ensure reliable operation. This can be achieved using external components and circuitry.
The V48C24C150BL2 is designed to meet CISPR 22 Class B and FCC Part 15 Class B emissions standards. However, additional EMI filtering and shielding may be required depending on the specific application and environment.
The V48C24C150BL2 is designed for industrial and commercial applications, but Vicor also offers high-reliability and high-temperature versions of this converter, such as the V48C24C150BL2-HR or V48C24C150BL2-HT. These versions have additional screening and testing to ensure reliability in harsh environments.
Vicor provides a troubleshooting guide and application notes that cover common issues and debugging techniques. Additionally, Vicor's technical support team can provide assistance and guidance for specific issues.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
V48C24C150BL2 Overview

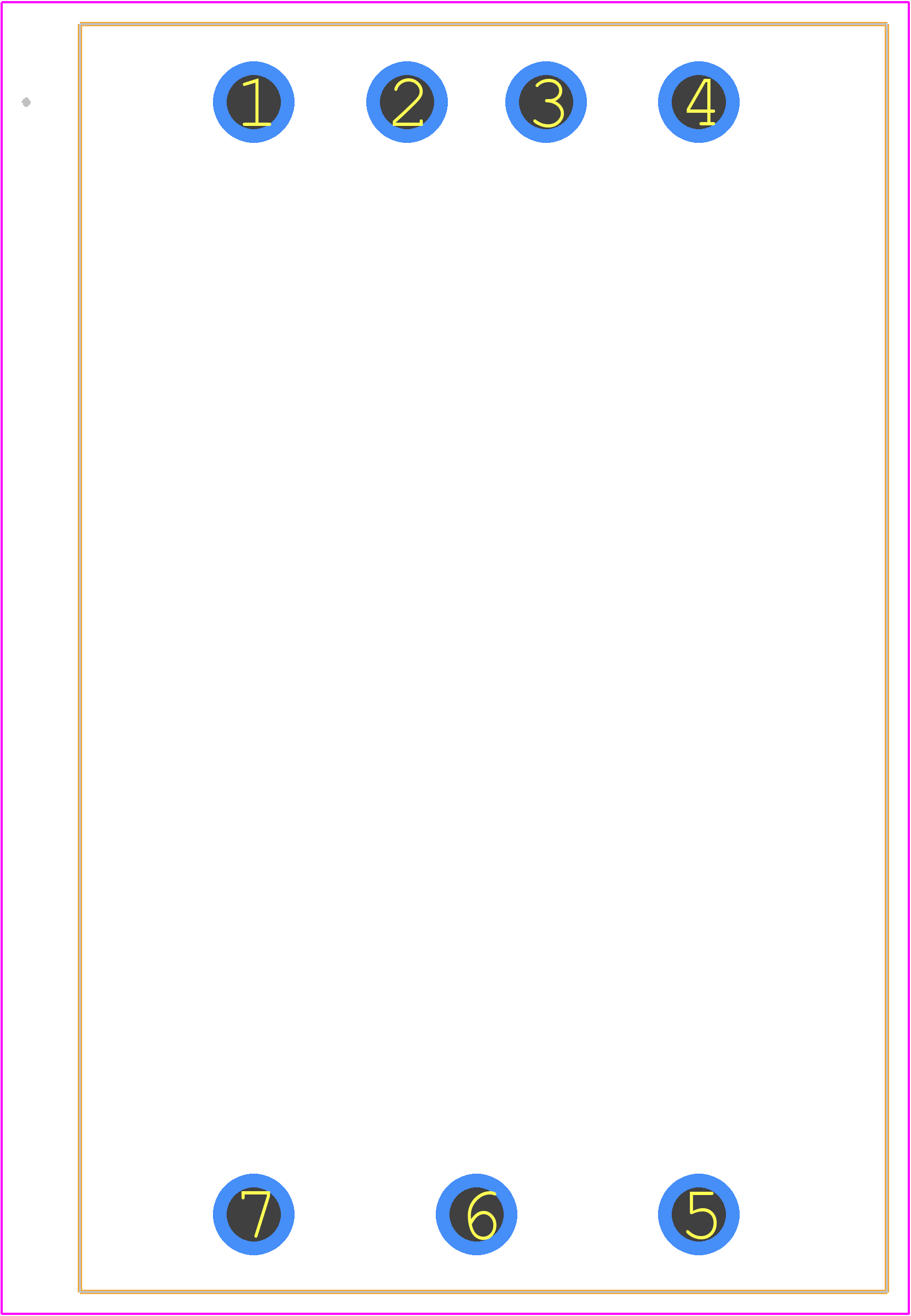

Use the download button to access the V48C24C150BL2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V48C2,
or try a keyword search, such as Power Supply Modules
