Delta Electronics provides a reference design guide and thermal design notes in their application notes and whitepapers. It's recommended to follow these guidelines for optimal performance and thermal management.
Review the datasheet and certification documents (e.g., UL, CE, RoHS) to ensure compliance with relevant safety standards. Additionally, consult with Delta Electronics' technical support or a qualified safety engineer to address specific application requirements.
The maximum allowable capacitance is not explicitly stated in the datasheet. However, as a general rule, it's recommended to keep the output capacitance below 10uF to avoid stability issues. Consult with Delta Electronics' technical support for specific guidance.
The V48SC05020NNFA is designed to meet standard industrial vibration and shock requirements. However, for extreme environments, it's recommended to consult with Delta Electronics' technical support to discuss custom testing and validation or consider alternative products with enhanced ruggedness features.
Consult the datasheet and application notes for troubleshooting guidelines. Additionally, use standard debugging techniques such as monitoring input/output voltages, currents, and temperatures. If issues persist, contact Delta Electronics' technical support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
V48SC05020NNFA Overview

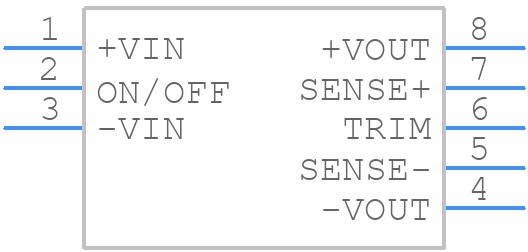

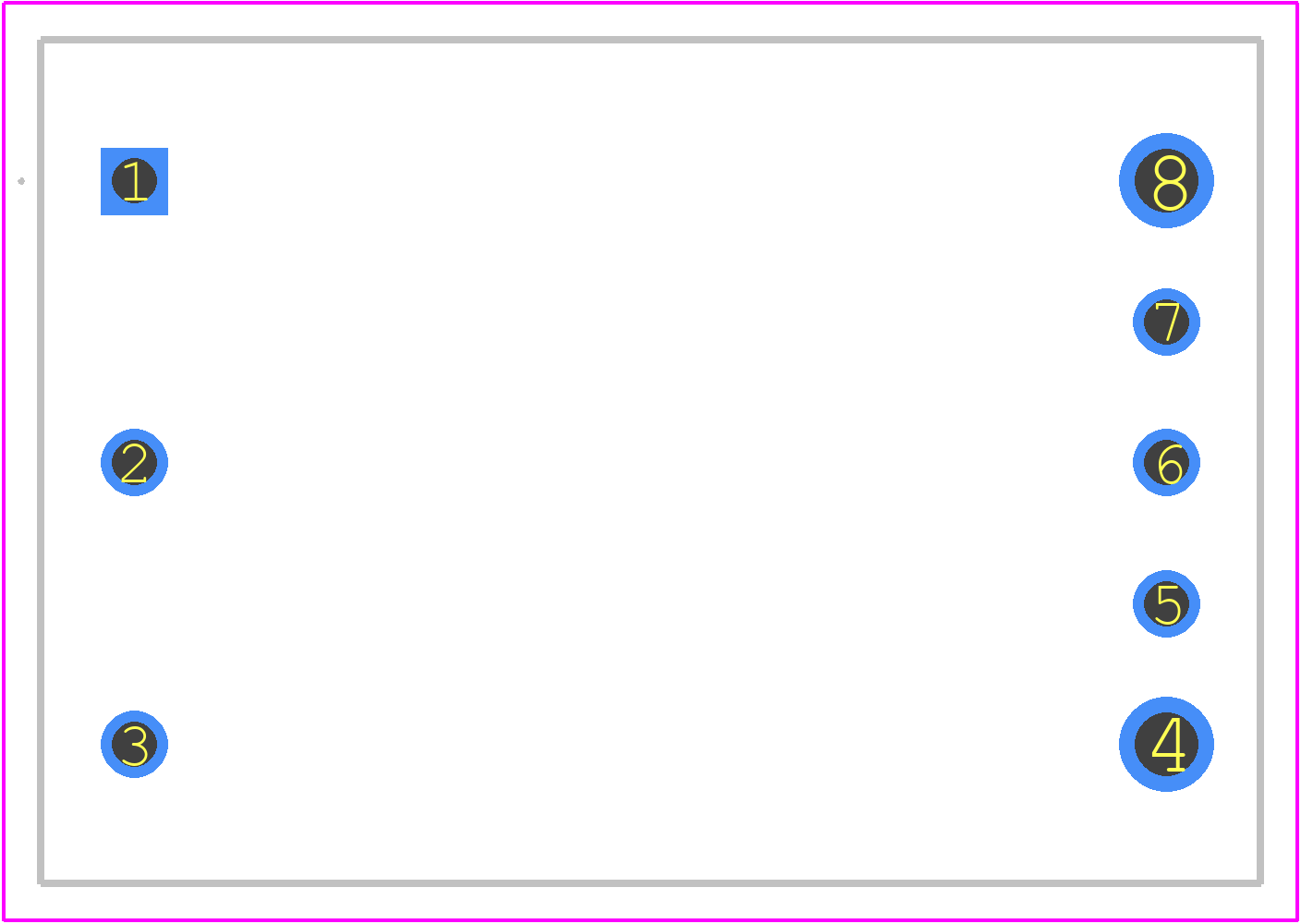

Use the download button to access the V48SC05020NNFA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V48SC,
or try a keyword search, such as Power Supply Modules
