V48SC12007NRFA - Delta Electronics

Description: Isolated DC/DC Converters - Through Hole DC/DC Converter, 1/16 Brick, 12Vout, 7A

Download V48SC12007NRFA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

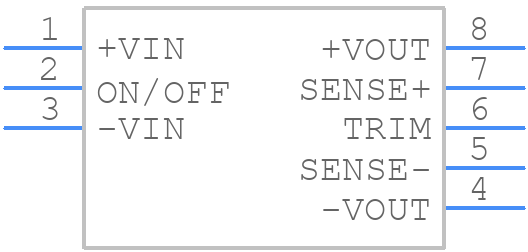

V48SC12007NRFA - Delta Electronics - PCB symbol
click to zoom
PCB Footprints

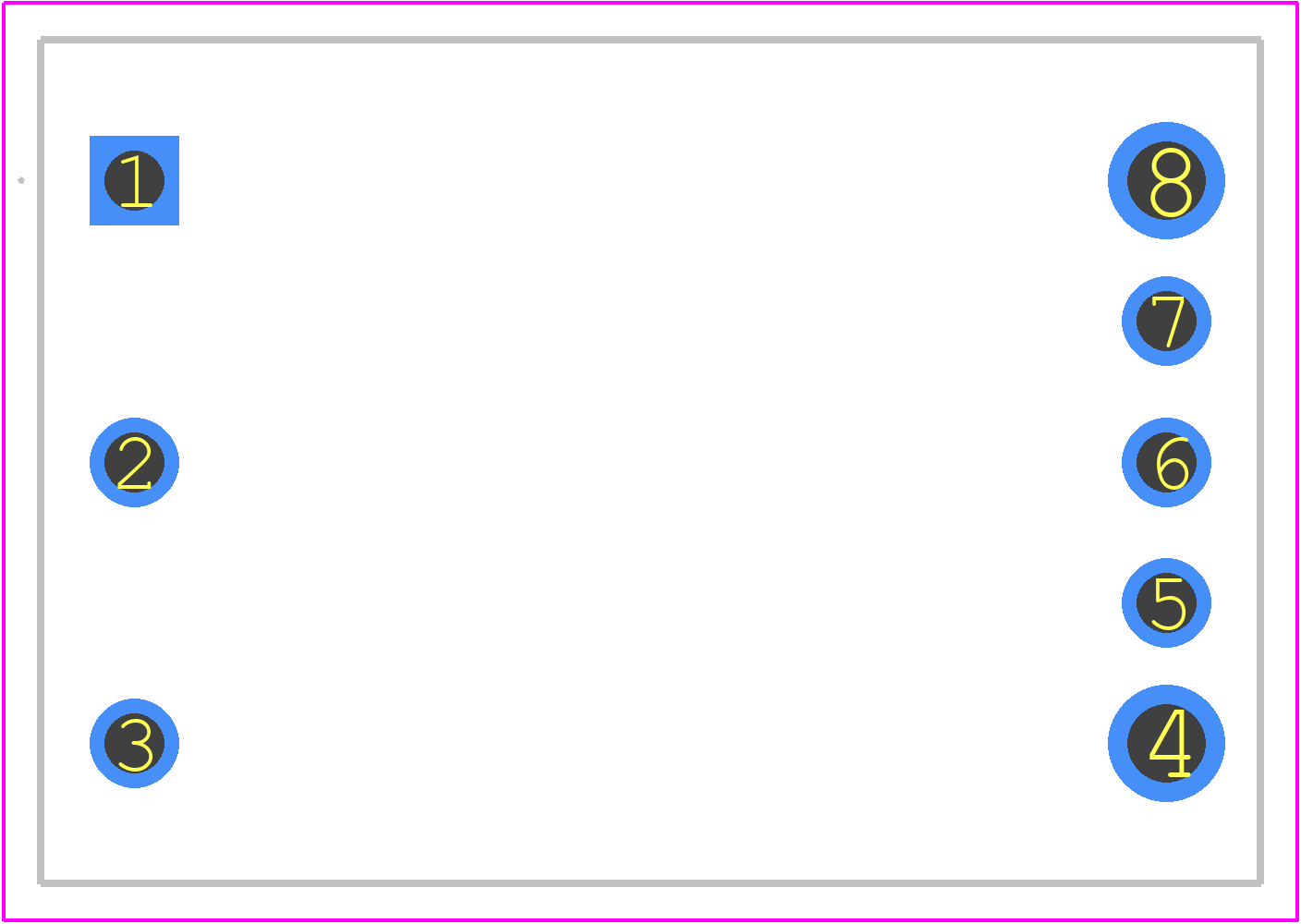

V48SC12007NRFA - Delta Electronics PCB footprint - Other - Other - 8-DIP Module
click to zoom
3D Models
V48SC12007NRFA - Delta Electronics - 3D model - Other - 8-DIP Module
click to zoom

V48SC12007NRFA Details

  • Manufacturer Part Number:

    V48SC12007NRFA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    1/16TH BRICK PACKAGE-8

  • ECCN Code:

    EAR99

  • Manufacturer:

    Delta Electronics Inc

  • YTEOL:

    7.3

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    36 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-XDMA-P8

  • Length:

    33 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    46 °C

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    9.6 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    9.5 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    90 W

  • Trim/Adjustable Output:

    YES

  • Width:

    22.8 mm

V48SC12007NRFA Frequently Asked Questions (FAQs)

  • The recommended PCB layout and thermal design can be found in the application note provided by Delta Electronics Inc. It is essential to follow the guidelines to ensure optimal performance, heat dissipation, and reliability.
  • The V48SC12007NRFA is designed to meet various safety and regulatory standards, including UL, EN, and IEC. Ensure that the converter is used within the specified operating conditions and follow the guidelines provided by Delta Electronics Inc. for compliance with relevant standards.
  • The recommended input and output filtering can be found in the application note provided by Delta Electronics Inc. Proper filtering is essential to minimize EMI and ensure compliance with EMC standards. It is recommended to follow the guidelines to ensure optimal performance and compliance.
  • Delta Electronics Inc. provides troubleshooting guides and application notes that can help identify and resolve common issues. It is recommended to follow the guidelines and consult with the manufacturer's support team if necessary.
  • The recommended derating curve can be found in the application note provided by Delta Electronics Inc. The derating curve provides guidance on the converter's performance under various operating conditions, including temperature, input voltage, and output current.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

V48SC12007NRFA Overview

Use the download button to access the V48SC12007NRFA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V48SC, or try a keyword search, such as Power Supply Modules
