V571HB34 - LITTELFUSE

Description: 910 V 40 kA Varistor 1 Circuit Through Hole Square 34mm, Formed Tabs

Download V571HB34 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
V571HB34 - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints

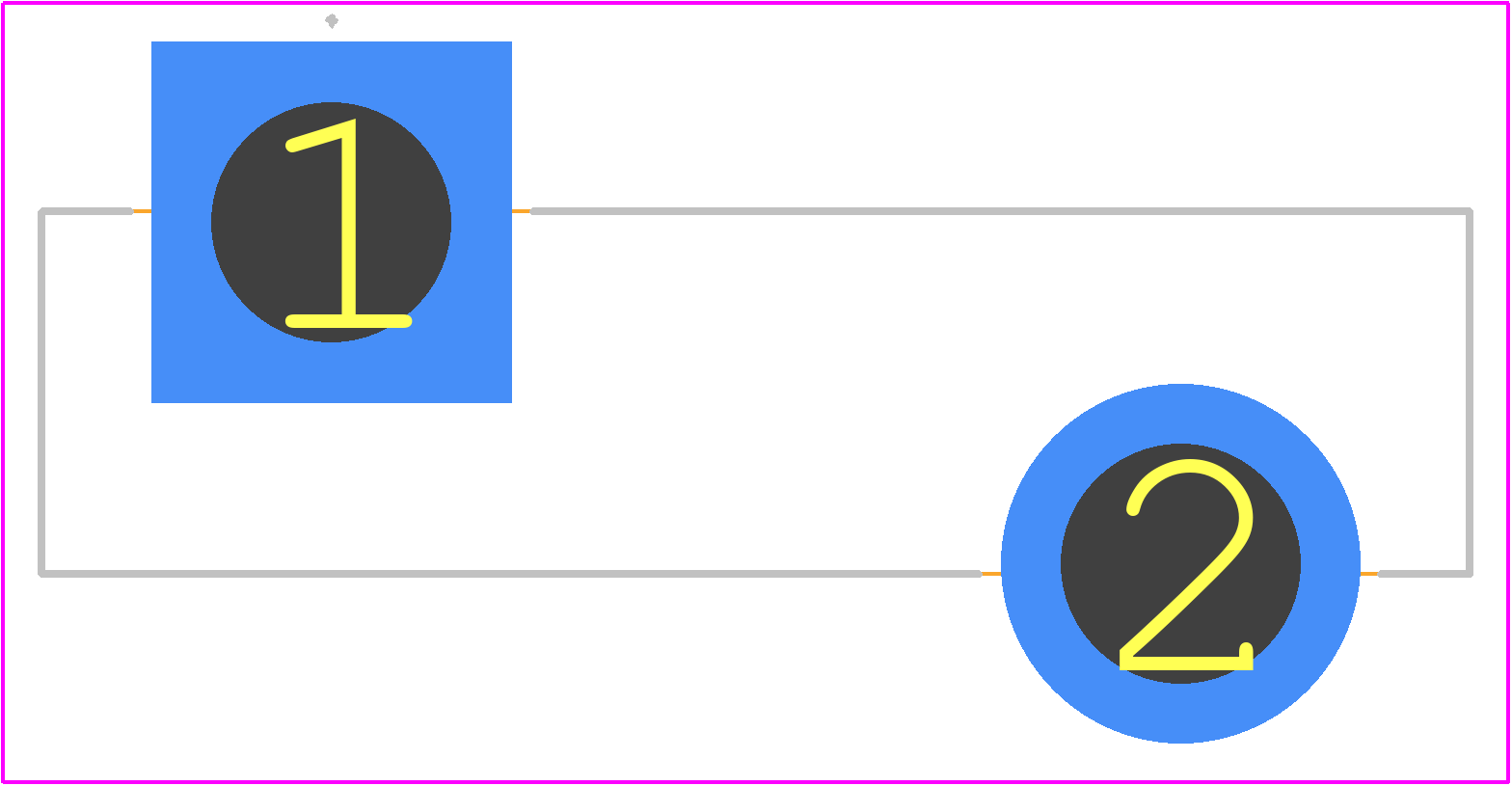

V571HB34 - LITTELFUSE PCB footprint - Other - Other - V571HB34-4
click to zoom
3D Models
V571HB34 - LITTELFUSE - 3D model - Other - V571HB34-4
click to zoom

V571HB34 Details

  • Manufacturer Part Number:

    V571HB34

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.40.00

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    7.5

  • Circuit RMS Voltage-Max:

    570 V

  • Energy Absorbing Capacity-Max:

    770 J

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    42.5 mm

  • Package Length:

    37 mm

  • Package Style:

    Radial

  • Package Width:

    9.4 mm

  • Reference Standard:

    CUL; UL

  • Resistor Type:

    VARISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL OXIDE

  • Terminal Finish:

    TIN

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    FLAT

  • Working Voltage:

    730 V

V571HB34 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the V571HB34 is a standard SOT23 package with a 5-pin configuration. The recommended land pattern is available in the Littelfuse application note AN9313.
  • To ensure proper soldering, follow the recommended soldering profile and use a solder with a melting point below 260°C. Avoid applying excessive heat or force, which can damage the device.
  • The maximum allowed voltage on the V571HB34 input pins is 40V, with a maximum transient voltage of 50V for a duration of less than 100ms.
  • The V571HB34 is rated for operation up to 150°C, but the device's performance and reliability may degrade above 125°C. Consult the datasheet and application notes for specific guidance on high-temperature operation.
  • Handle the V571HB34 with ESD-protective equipment and follow proper ESD handling procedures to prevent damage. The device has an internal ESD protection diode, but external protection is still recommended.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

V571HB34 Overview

Use the download button to access the V571HB34 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V571H, or try a keyword search, such as Non-linear Resistors
