V68ZA2P - LITTELFUSE

Description: Littelfuse ZA Series Metal Oxide Varistor 910pF 2.5A, Clamping 135V, Varistor 75V

Download V68ZA2P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
V68ZA2P - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints

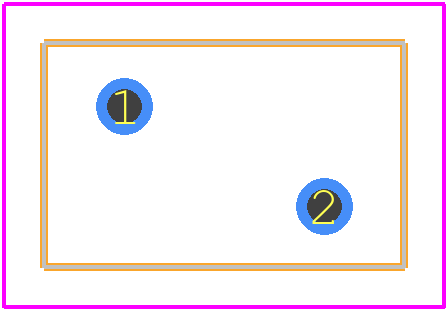

V68ZA2P - LITTELFUSE PCB footprint - Other - Other - V68ZA2P-1
click to zoom
3D Models
V68ZA2P - LITTELFUSE - 3D model - Other - V68ZA2P-1
click to zoom

V68ZA2P Details

  • Manufacturer Part Number:

    V68ZA2P

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.40.00

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    8

  • Circuit RMS Voltage-Max:

    40 V

  • Energy Absorbing Capacity-Max:

    3 J

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    12 mm

  • Package Length:

    9 mm

  • Package Shape:

    DISK PACKAGE

  • Package Style:

    Radial

  • Package Width:

    5.6 mm

  • Packing Method:

    BULK

  • Rated Temperature:

    85 °C

  • Reference Standard:

    CECC; CUL; UL; VDE

  • Resistor Type:

    VARISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL OXIDE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Working Voltage:

    56 V
