The recommended PCB footprint for the V68ZS10P is a rectangular pad with dimensions of 2.5mm x 1.5mm, with a 0.5mm radius corner and a 0.3mm spacing between pads.
Yes, the V68ZS10P is rated for operation up to 150°C, making it suitable for high-temperature applications. However, it's essential to ensure that the device is properly derated for temperature to avoid thermal runaway.
To ensure proper soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes thermal stress, such as reflow soldering or wave soldering.
The V68ZS10P has a maximum surge current rating of 100A for 10/1000μs, making it suitable for applications that require high surge current protection.
Yes, the V68ZS10P can be used in parallel to increase the current rating, but it's essential to ensure that the devices are properly matched and that the PCB layout is designed to minimize current imbalance and thermal stress.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
V68ZS10P Overview

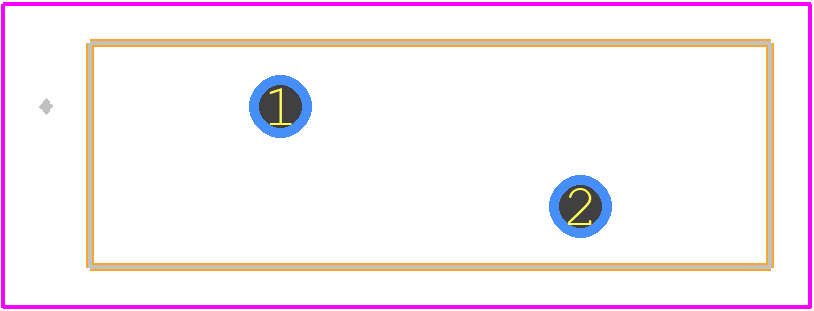

Use the download button to access the V68ZS10P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V68ZS,
or try a keyword search, such as Varistor
