V72C5M100BG - VICOR

Description: Isolated DC/DC Converters - Through Hole Watts- 100 Vin 72 Vout 5 Grade - M

Download V72C5M100BG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

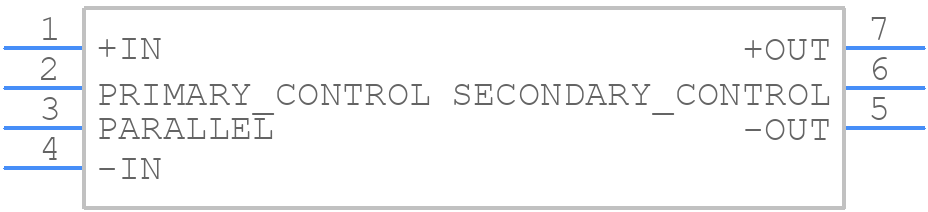

V72C5M100BG - VICOR - PCB symbol
click to zoom
PCB Footprints

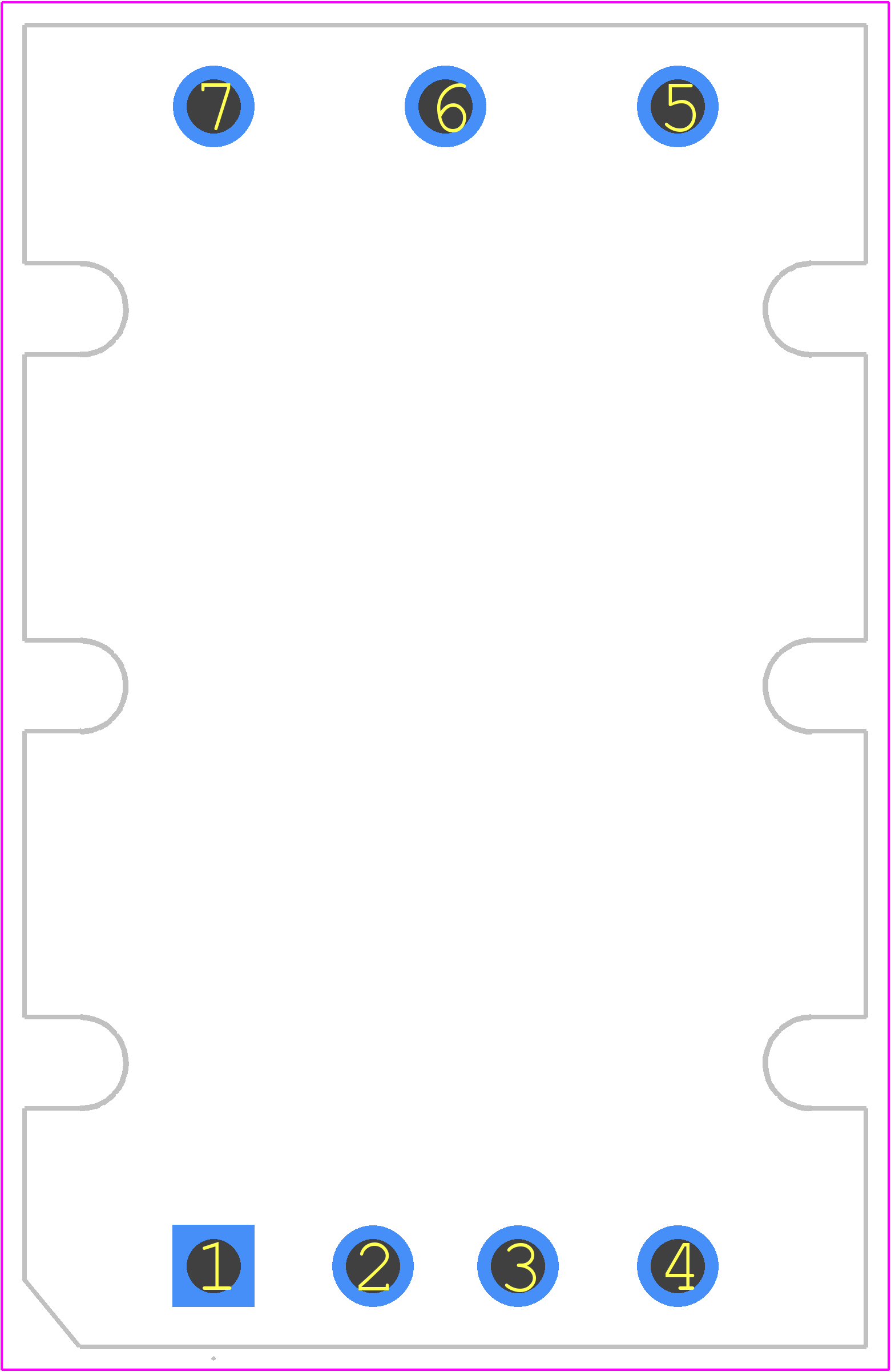

V72C5M100BG - VICOR PCB footprint - Other - Other - V72C5M100BG-2
click to zoom
3D Models
V72C5M100BG - VICOR - 3D model - Other - V72C5M100BG-2
click to zoom

V72C5M100BG Details

  • Manufacturer Part Number:

    V72C5M100BG

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    PACKAGE-7

  • Pin Count:

    7

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    7.1

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE
