- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for V7812-500
- Part Number V7812-500
- Manufacturer CUI Inc.
- Pin Count 6
- Part Category Power Supply
- Package Category Other
- Footprint Name Other - V7812-500-3
- Released Date Jan 30, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
V7812-500 Details
-
Manufacturer Part Number:
V7812-500
-
Brand Name:
CUI Inc
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
SIP-3
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
CUI Inc
-
YTEOL:
0
-
Analog IC - Other Type:
SWITCHING REGULATOR
V7812-500 Frequently Asked Questions (FAQs)
-
CUI recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure efficient heat dissipation.
-
To ensure reliable start-up and shutdown, CUI recommends a soft-start circuit and a voltage supervisor to monitor the output voltage and prevent damage during power-up and power-down sequences.
-
The V7812-500 can drive up to 10,000 μF of capacitive load, but it's recommended to derate the output capacitance to 4,700 μF for optimal stability and performance.
-
While the V7812-500 is rated for operation up to 85°C, CUI recommends derating the output power by 1% for every 1°C above 70°C to ensure reliable operation in high-temperature environments.
-
To troubleshoot output voltage deviations or oscillations, CUI recommends checking the input voltage, output capacitance, and PCB layout for any anomalies or noise sources that may be affecting the regulator's performance.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
V7812-500 Overview

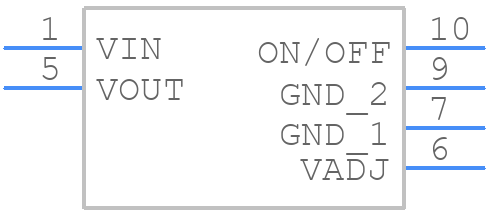

Use the download button to access the V7812-500 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V7812,
or try a keyword search, such as Power Supply Modules
