V9958 - LSI

V9958 Details

• Manufacturer Part Number:

  V9958

• Part Life Cycle Code:

  Obsolete

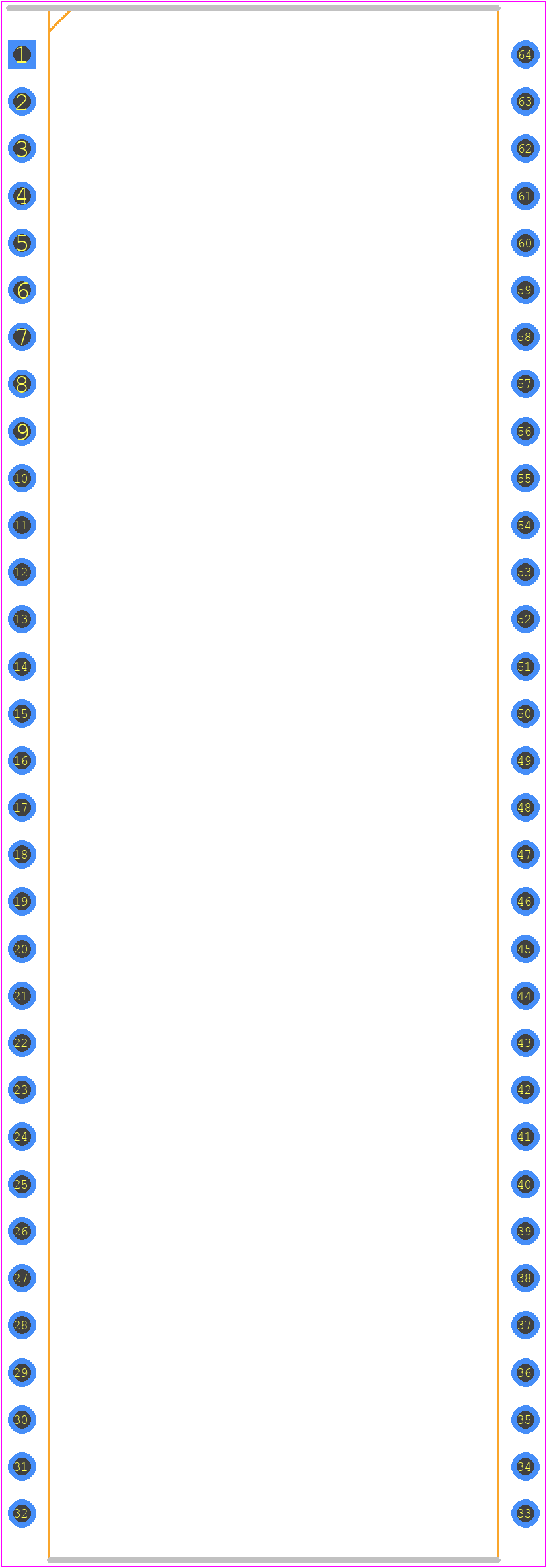

• Part Package Code:

  DIP

• Package Description:

  SHRINK, PLASTIC, DIP-64

• Pin Count:

  64

• HTS Code:

  8542.31.00.40

• Manufacturer:

  Yamaha LSI

• YTEOL:

  0

• External Data Bus Width:

  8

• JESD-30 Code:

  R-PDIP-T64

• JESD-609 Code:

  e0

• Length:

  58 mm

• Number of Terminals:

  64

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SDIP

• Package Equivalence Code:

  SDIP64,.75

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE, SHRINK PITCH

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.7 mm

• Supply Current-Max:

  230 mA

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  1.778 mm

• Terminal Position:

  DUAL

• Width:

  19.05 mm

• uPs/uCs/Peripheral ICs Type:

  GRAPHICS PROCESSOR
