VA41630-PQ176F0PBA footprint, schematic symbol and 3D model by VORAGO

Symbol

click to zoom

PCB Footprints

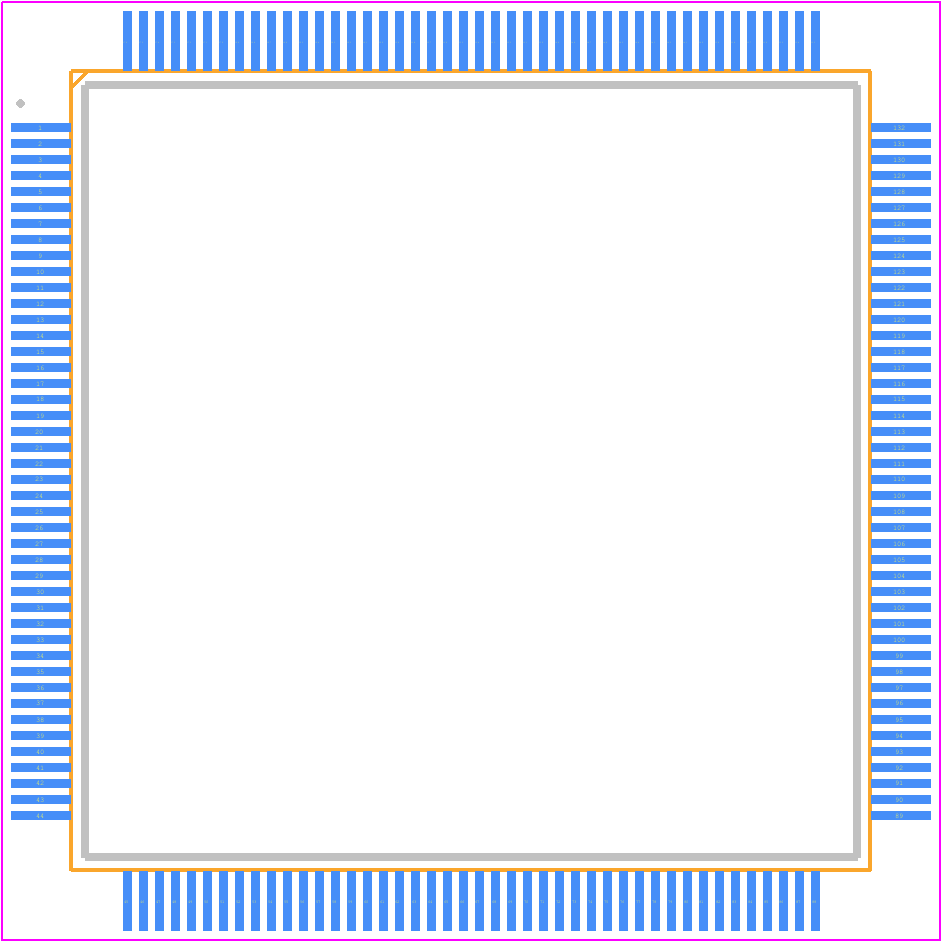

VA41630-PQ176F0PBA - VORAGO PCB footprint - Quad Flat Packages - Quad Flat Packages - 176 Plastic QFP

click to zoom

3D Models

VA41630-PQ176F0PBA - VORAGO - 3D model - Quad Flat Packages - 176 Plastic QFP

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for VA41630-PQ176F0PBA
Part Number VA41630-PQ176F0PBA
Manufacturer VORAGO
Pin Count 176
Part Category Integrated Circuit
Package Category Quad Flat Packages
Footprint Name Quad Flat Packages - 176 Plastic QFP
Released Date Nov 24, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

VA41630-PQ176F0PBA Details

Manufacturer Part Number:
VA41630-PQ176F0PBA
Part Life Cycle Code:
Contact Manufacturer
Package Description:
QFP-176
ECCN Code:
3A001.a.2.c
HTS Code:
8542.31.00.25
Manufacturer:
VORAGO Technologies
Has ADC:
YES
Bit Size:
32
Boundary Scan:
YES
CPU Family:
CORTEX-M4
DAC Channels:
YES
DMA Channels:
YES
Format:
FLOATING POINT
Integrated Cache:
NO
JESD-30 Code:
S-PQFP-G176
Low Power Mode:
YES
Number of DMA Channels:
4
Number of I/O Lines:
104
Number of Serial I/Os:
3
Number of Terminals:
176
Number of Timers:
24
On Chip Data RAM Width:
8
On Chip Program ROM Width:
8
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
PWM Channels:
YES
Package Body Material:
PLASTIC/EPOXY
Package Code:
QFP
Package Shape:
SQUARE
Package Style:
FLATPACK
RAM (bytes):
327680
ROM (words):
262144
ROM Programmability:
FRAM
Screening Level:
AEC-Q100; MIL-STD-883
Speed:
100 MHz
Supply Voltage-Max:
3.63 V
Supply Voltage-Min:
2.97 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
CMOS
Terminal Form:
GULL WING
Terminal Position:
QUAD
Total Dose:
200k Rad(Si) V
uPs/uCs/Peripheral ICs Type:
MICROCONTROLLER, RISC

VA41630-PQ176F0PBA Frequently Asked Questions (FAQs)

VORAGO recommends following the PCB layout guidelines in the datasheet and application notes. For thermal management, ensure a minimum of 1mm clearance around the device, use thermal vias, and consider a heat sink or thermal interface material.
Follow VORAGO's radiation-hardened design guidelines, use triple modular redundancy (TMR) or other mitigation techniques, and consult with VORAGO's application engineers for customized support.
VORAGO performs extensive radiation testing, including total ionizing dose (TID) and single-event effects (SEE) testing. Customers can request test reports and validation data from VORAGO.
Use the device's power-saving features, such as dynamic voltage and frequency scaling, and optimize your system's power management strategy. Consult VORAGO's application notes and power management guides for more information.
Follow VORAGO's EMI and RFI mitigation guidelines, use shielding, and implement proper grounding and decoupling techniques. Consult with VORAGO's application engineers for customized support.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

VA41630-PQ176F0PBA Overview

Use the download button to access the VA41630-PQ176F0PBA schematic symbol, PCB footprint, and 3D model.
