Cosel recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
Cosel recommends consulting with their technical support team to ensure the VAA1005 meets specific safety and regulatory requirements, such as UL, EN, and IEC standards, and to obtain necessary certifications.
The derating curve for the VAA1005 is available upon request from Cosel's technical support team. It provides information on the maximum output power at different ambient temperatures, and can be used to determine the suitable operating conditions for the application.
Yes, the VAA1005 can be used in a redundant or parallel configuration, but it requires careful consideration of the system design, including synchronization, current sharing, and fault tolerance. Cosel recommends consulting with their technical support team for guidance on implementing such a configuration.
The typical MTBF for the VAA1005 is >1,000,000 hours, calculated according to MIL-HDBK-217F. This indicates a high level of reliability, but the actual MTBF may vary depending on the application, operating conditions, and environmental factors.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VAA1005 Overview

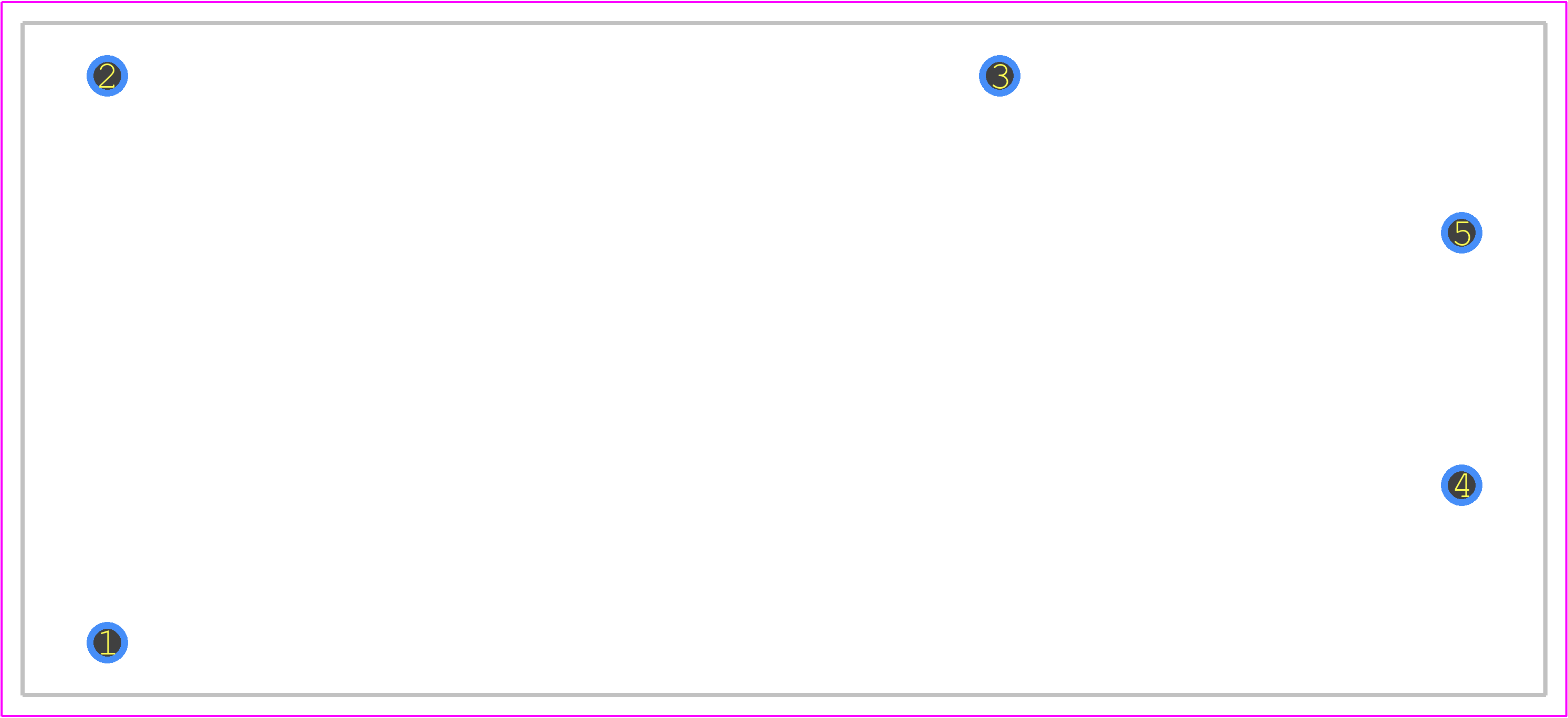

Use the download button to access the VAA1005 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VAA10,
or try a keyword search, such as Power Supply Modules
