Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for VB-12SMCU
- Part Number VB-12SMCU
- Manufacturer FCL Components
- Pin Count 6
- Part Category Relay or Contactor
- Package Category Other

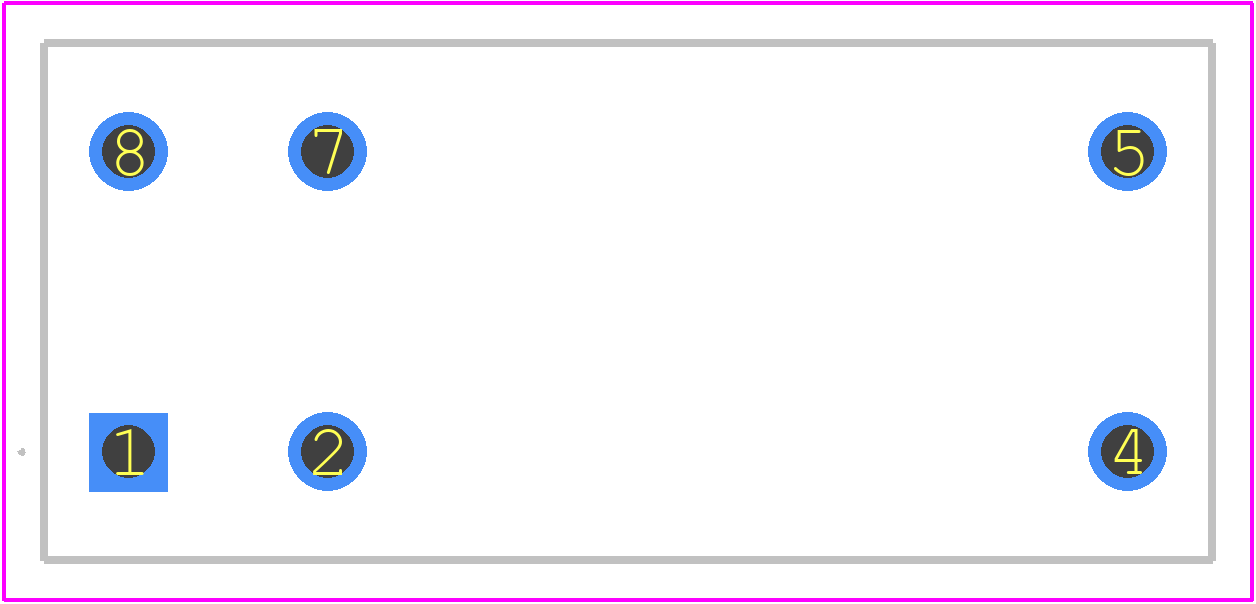

- Footprint Name Other - VB-12SMCU-1
- Released Date Jan 1, 2022
- Last Modified Date Apr 3, 2025 12:38 PM UTC
- Pinout / Pin List Click Here (Member Only)
VB-12SMCU Details
-
Manufacturer Part Number:
VB-12SMCU
-
Manufacturer:
FCL Components Limited
Trust Checks
Expert Contribution
System Verified
Community Approved
VB-12SMCU Overview
Use the download button to access the VB-12SMCU schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like VB-12,
or try a keyword search, such as Power/Signal Relays
