VB325SP - STMicroelectronics

Description: Motor / Motion / Ignition Controllers & Drivers High Volt Ignition

Download VB325SP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

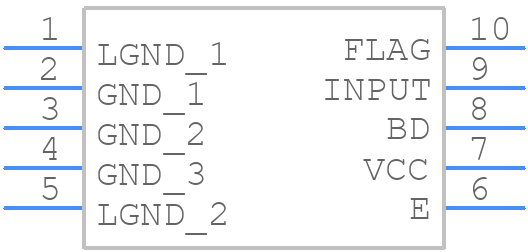

VB325SP - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VB325SP - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSO-10
click to zoom
3D Models
VB325SP - STMicroelectronics - 3D model - Small Outline Packages - PowerSO-10
click to zoom

VB325SP Details

  • Manufacturer Part Number:

    VB325SP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SO-10

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; THERMAL

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    9.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Output Current Flow Direction:

    SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    24 V

  • Supply Voltage1-Min:

    5.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    25 µs

  • Turn-on Time:

    5 µs

  • Width:

    7.5 mm

VB325SP Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the VB325SP application note (AN5273) to ensure optimal thermal performance. The layout includes a thermal pad connected to a large copper area on the PCB to dissipate heat efficiently.
  • The input capacitor selection depends on the input voltage, output voltage, and output current. A general guideline is to choose a capacitor with a voltage rating at least 1.5 times the input voltage, and a capacitance value between 1uF to 10uF. Refer to the VB325SP application note (AN5273) for more detailed guidance.
  • The VB325SP can deliver up to 3.25A of output current, but this is dependent on the input voltage, output voltage, and thermal conditions. Refer to the datasheet's electrical characteristics table for more information.
  • The VB325SP has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCP pin and the GND pin. The value of the resistor determines the overcurrent threshold. Refer to the datasheet's electrical characteristics table for more information.
  • The EN (Enable) pin is used to enable or disable the VB325SP. When the EN pin is pulled high, the device is enabled, and when it's pulled low, the device is disabled. This pin can be used to implement power sequencing or to turn off the device when not in use.
