Technical Content
Part Image

VB526SPTR-E - STMicroelectronics

Description: High voltage ignition coil driver power integrated circuit

Download VB526SPTR-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

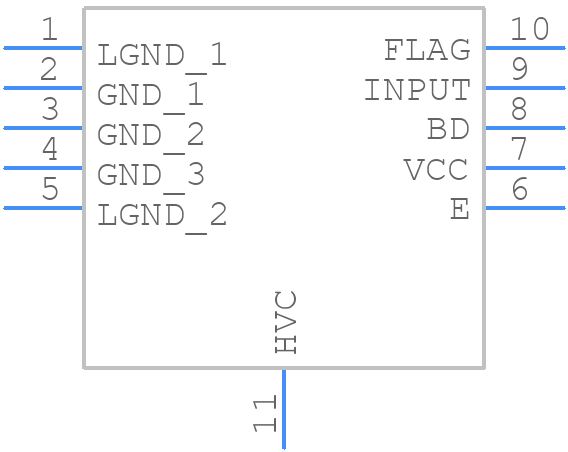

Symbol
VB526SPTR-E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
VB526SPTR-E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSO-10_1_2022
click to zoom
3D Models
VB526SPTR-E - STMicroelectronics - 3D model - Small Outline Packages - PowerSO-10_1_2022
click to zoom

VB526SPTR-E Details

  • Manufacturer Part Number:

    VB526SPTR-E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    PowerSO-10

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    1

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    9.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-COLLECTOR

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    10 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    3.65 mm

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    24 V

  • Supply Voltage1-Min:

    5.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    25 µs

  • Turn-on Time:

    5 µs

  • Width:

    7.5 mm

VB526SPTR-E Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for VB526SPTR-E is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range.
  • To ensure proper powering, make sure to follow the recommended power-up sequence, provide a stable voltage supply within the specified range (1.65V to 3.6V), and decouple the power pins with suitable capacitors to minimize noise and voltage drops.
  • The maximum current rating for the VB526SPTR-E is 100mA, as specified in the datasheet. Exceeding this rating may cause the device to overheat, leading to reduced performance or even damage.
  • To configure the VB526SPTR-E for low-power mode, refer to the datasheet's power management section. You can use the device's built-in power-saving features, such as the shutdown mode, to reduce power consumption. Additionally, consider using external components, like resistors and capacitors, to optimize the power supply and minimize leakage currents.
  • For optimal performance and reliability, follow the recommended PCB layout and design considerations outlined in the datasheet and application notes. Key considerations include minimizing trace lengths, using a solid ground plane, and placing decoupling capacitors close to the device's power pins.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VB526SPTR-E Overview

Use the download button to access the VB526SPTR-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VB526, or try a keyword search, such as Peripheral Drivers
