VBT10200C-E3/4W - Vishay

Description: Schottky Diodes & Rectifiers 10A 200V TrenchMOS

Download VBT10200C-E3/4W Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

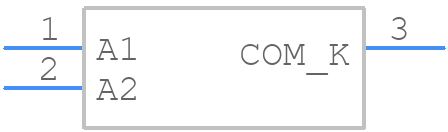

Symbol
VBT10200C-E3/4W - Vishay - PCB symbol
click to zoom

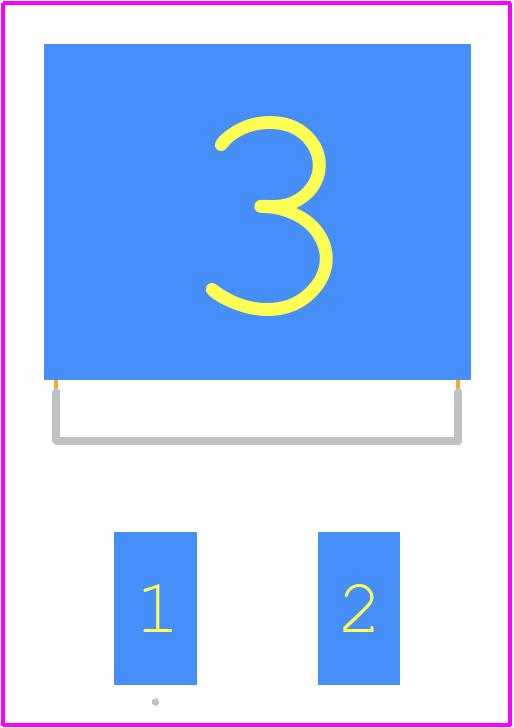

PCB Footprints
VBT10200C-E3/4W - Vishay PCB footprint - Other - Other - VBT10200C-E3/4W-2
click to zoom
3D Models
VBT10200C-E3/4W - Vishay - 3D model - Other - VBT10200C-E3/4W-2
click to zoom

VBT10200C-E3/4W Details

  • Manufacturer Part Number:

    VBT10200C-E3/4W

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC PACKAGE-3

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6.45

  • Additional Feature:

    FREE WHEELING DIODE, LOW POWER LOSS

  • Application:

    EFFICIENCY

  • Case Connection:

    CATHODE

  • Configuration:

    COMMON CATHODE, 2 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.73 V

  • JEDEC-95 Code:

    TO-263AB

  • JESD-30 Code:

    R-PSSO-G2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    80 A

  • Number of Elements:

    2

  • Number of Phases:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    200 V

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

VBT10200C-E3/4W Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for VBT10200C-E3/4W is a rectangular pad with dimensions of 2.5 mm x 1.5 mm, with a 0.5 mm radius corner and a 0.3 mm spacing between pads.
  • While the VBT10200C-E3/4W is rated for operation up to 150°C, it's recommended to derate the power dissipation at higher temperatures to ensure reliability. Consult the datasheet for derating curves and consult with a thermal expert if necessary.
  • To ensure reliability in high-humidity environments, follow proper PCB design and assembly guidelines, including using a moisture-resistant coating, conformal coating, or potting. Additionally, consider using a humidity sensor to monitor the environment and take corrective action if necessary.
  • The recommended soldering profile for VBT10200C-E3/4W is a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C. Consult the datasheet for more detailed soldering guidelines.
  • While the VBT10200C-E3/4W is designed to withstand normal vibration, it's recommended to consult with a mechanical engineer to ensure the device is properly secured and the PCB is designed to withstand the expected vibration levels.
