VC0200500000G - Amphenol

Description: Pluggable Terminal Blocks 2P TERM BLOCK SCKT R/A PLUGGABLE 7.62MM

Download VC0200500000G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
VC0200500000G - Amphenol - PCB symbol
click to zoom
PCB Footprints

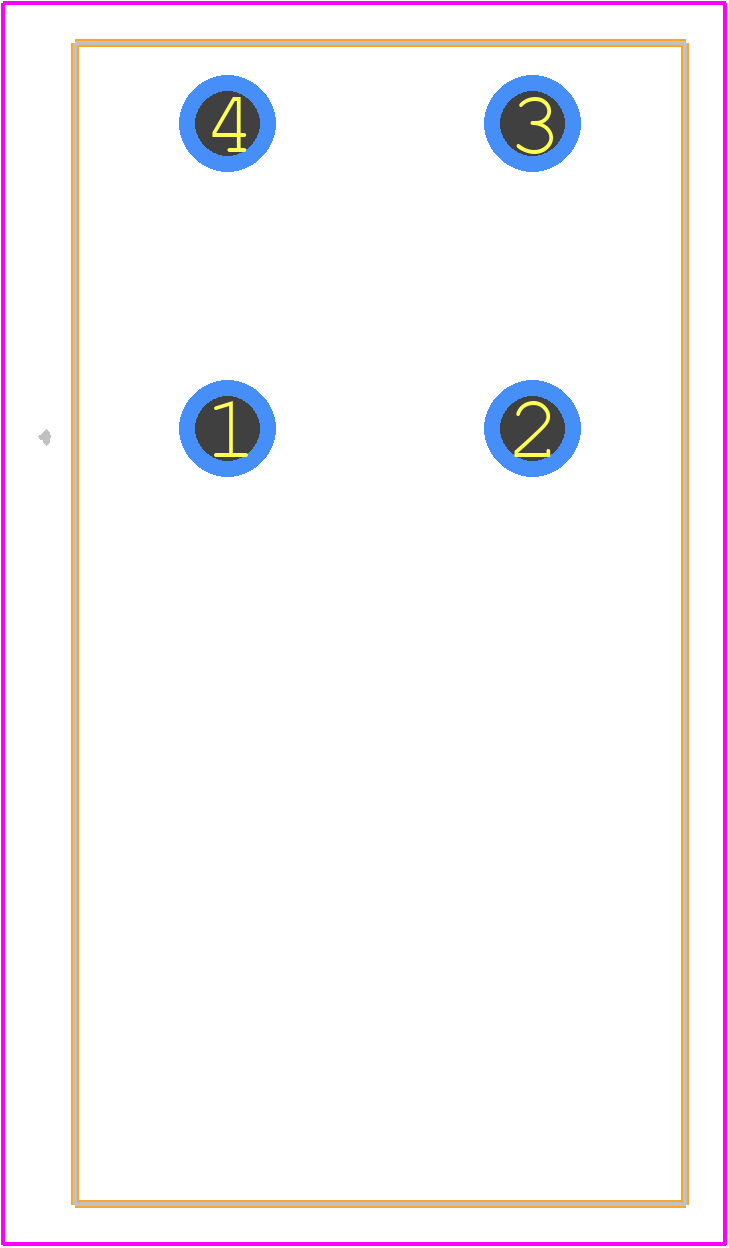

VC0200500000G - Amphenol PCB footprint - Other - Other - VC0200500000G-2
click to zoom
3D Models
VC0200500000G - Amphenol - 3D model - Other - VC0200500000G-2
click to zoom

VC0200500000G Details

  • Manufacturer Part Number:

    VC0200500000G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    7.96

  • Additional Feature:

    STANDARD: UL 94V-0, POLYETHYLENE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    2

  • Rated Current:

    32 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; TUV; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

VC0200500000G Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the VC0200500000G is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as rail, aerospace, and industrial equipment.
  • The VC0200500000G has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and protection when using the connector in outdoor environments to maintain its performance and reliability.
  • The VC0200500000G has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this range to maintain its performance and reliability.
  • The VC0200500000G is designed to be compatible with other manufacturers' mating connectors that meet the same industry standards (e.g., EN 45545-3). However, it's recommended to verify compatibility and perform testing before using the connector with other manufacturers' products.
