VC0400500000G - Amphenol

Description: 4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.300" (7.62mm) 90°, Right Angle Through Hole

Download VC0400500000G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
VC0400500000G - Amphenol - PCB symbol
click to zoom
PCB Footprints

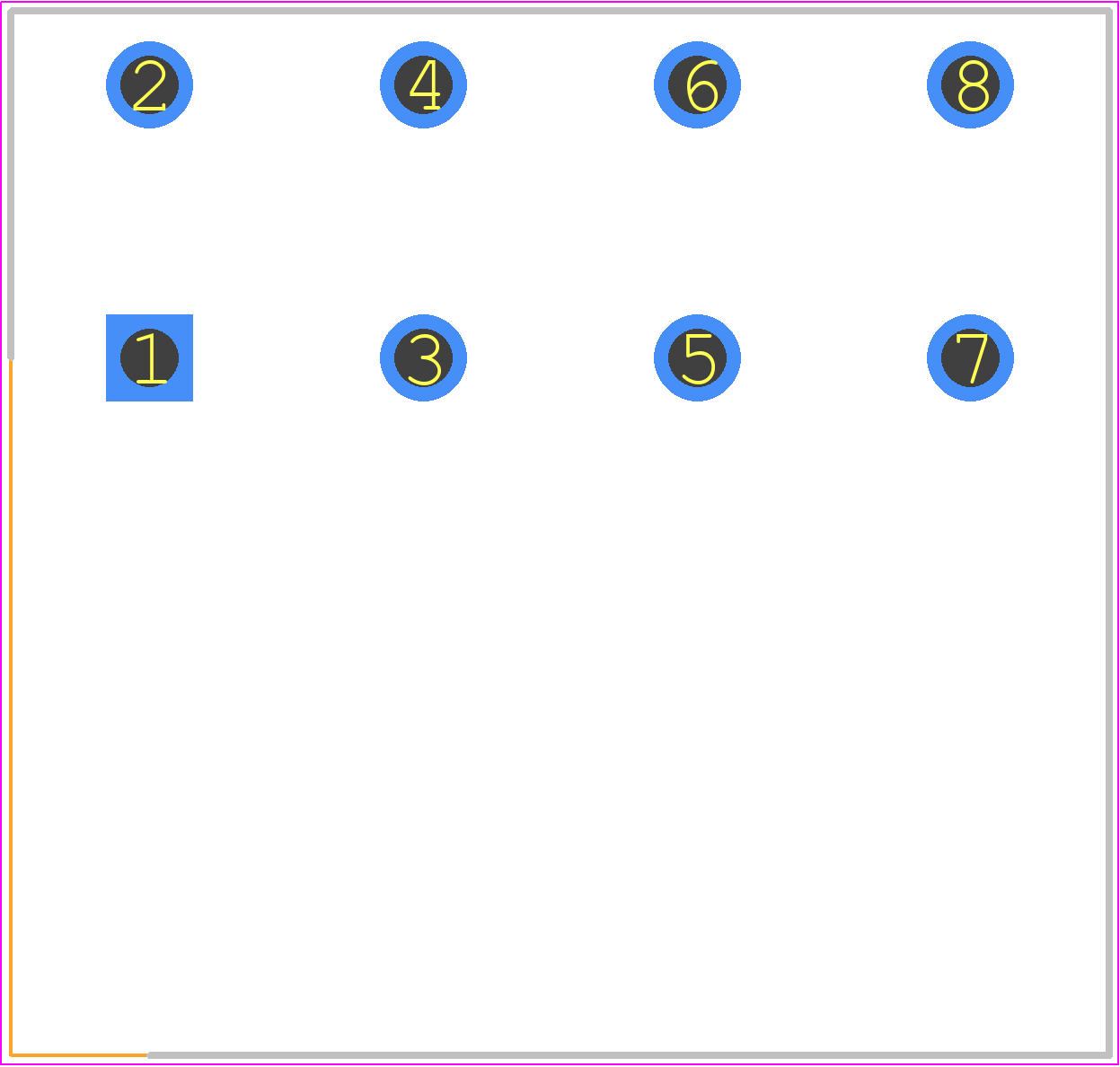

VC0400500000G - Amphenol PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - VC0400500000G
click to zoom
3D Models
VC0400500000G - Amphenol - 3D model - Header, Shrouded - Straight PTH Box - VC0400500000G
click to zoom

VC0400500000G Details

  • Manufacturer Part Number:

    VC0400500000G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    7.96

  • Additional Feature:

    STANDARD: UL 94V-0, POLYETHYLENE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    32 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; TUV; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

VC0400500000G Frequently Asked Questions (FAQs)

  • The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the screw threads of the VC0400500000G connector, as specified by Amphenol Corporation.
  • Yes, the VC0400500000G connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration, and 3 axes, as per Amphenol's specifications.
  • Yes, the VC0400500000G connector is designed to operate in harsh environments, with a temperature range of -55°C to 125°C and humidity rating of 95% RH, making it suitable for use in demanding applications.
  • The VC0400500000G connector has a mating cycle life of 500 cycles, as specified by Amphenol Corporation, ensuring reliable connections over an extended period.
  • The VC0400500000G connector can be used with both cable assemblies and PCB mounting, offering flexibility in design and application.
