A good PCB layout for the VCAN16A2-03G-E3-08 should consider the following: keep the component away from high-frequency sources, use a solid ground plane, and minimize the length of the transmission lines. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and EMI.
To ensure reliability in high-temperature applications, it's essential to follow proper derating guidelines, ensure good thermal management, and consider the device's operating temperature range. The VCAN16A2-03G-E3-08 is rated for operation up to 125°C, but derating may be necessary for extended lifetimes. Additionally, consider using thermal interface materials and heat sinks to reduce thermal resistance.
The recommended soldering conditions for the VCAN16A2-03G-E3-08 are: peak temperature of 260°C, soldering time of 10-30 seconds, and a soldering iron temperature of 350°C. It's also important to use a solder with a melting point above 217°C to prevent damage to the device.
To troubleshoot issues with the VCAN16A2-03G-E3-08, start by reviewing the datasheet and application notes to ensure proper usage and configuration. Check for proper power supply, signal integrity, and PCB layout. Use oscilloscopes and logic analyzers to debug the signal paths. If the issue persists, contact Vishay Intertechnologies' technical support for further assistance.
Yes, the VCAN16A2-03G-E3-08 is a sensitive device and requires proper ESD protection during handling and assembly. Use ESD-safe workstations, wrist straps, and packaging materials to prevent damage. Ensure that all personnel handling the device are properly trained in ESD protection procedures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VCAN16A2-03G-E3-08 Overview

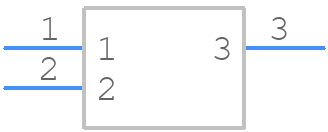

Use the download button to access the VCAN16A2-03G-E3-08 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VCAN1,
or try a keyword search, such as Transient Suppressors
