VCE40US05 - XP POWER

Description: Switching Power Supplies AC-DC, 40W, PCB MOUNT, ITE & HOUSEHOLD

Download VCE40US05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

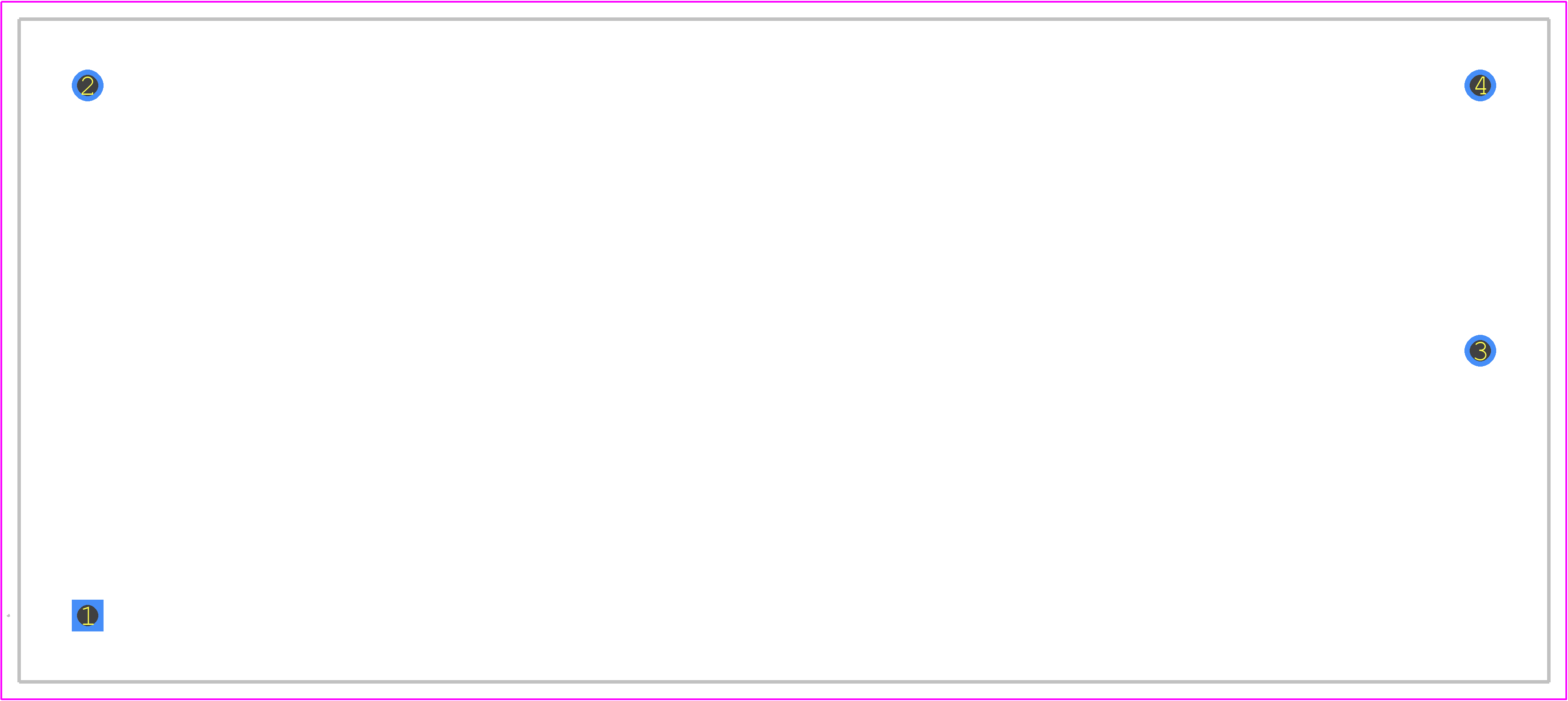

VCE40US05 - XP POWER PCB footprint - Other - Other - VCE40US05-2
click to zoom
3D Models
VCE40US05 - XP POWER  - 3D model - Other - VCE40US05-2
click to zoom

VCE40US05 Details

  • Manufacturer Part Number:

    VCE40US05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-4

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    7

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CB, CE, EN, TUV, UKCA, UL

  • Efficiency (Main Output):

    85%

  • Input Voltage-Max:

    305 V

  • Input Voltage-Min:

    85 V

  • Input Voltage-Nom:

    115 V

  • JESD-30 Code:

    R-XDMA-P4

  • Length:

    87.9 mm

  • Line Regulation-Max:

    1%

  • Load Regulation-Max:

    2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    8 A

  • Output Voltage-Max:

    5.075 V

  • Output Voltage-Min:

    4.925 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,4LEAD,3.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OVER LOAD, OVER VOLTAGE, SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.035 Vrms

  • Screening Level:

    EN/IEC/UL 62368-1

  • Seated Height-Max:

    29 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    40 W

  • Trim/Adjustable Output:

    NO

  • Warm-up Time:

    2.035 s

  • Width:

    38.1 mm

VCE40US05 Frequently Asked Questions (FAQs)

  • The maximum ambient temperature for the VCE40US05 is 70°C, with derating required above 50°C.
  • Yes, the VCE40US05 is certified for use in Class I, Division 2 hazardous locations, but additional precautions and installation requirements may apply.
  • The VCE40US05 has a minimum load requirement of 10% of the rated output power to maintain regulation and ensure reliable operation.
  • No, the VCE40US05 is not designed for paralleling, and attempting to do so may compromise the reliability and safety of the system.
  • The typical efficiency of the VCE40US05 is around 85-90%, depending on the input voltage and output load conditions.
