VCF4-1000 - TE Connectivity

Description: Contact Features: Relay Socket Type Printed Circuit Board | Operation/Application: Relay Socket For Use With Plug-In Mini ISO Relays | Other: Relays Comment Socket for PCB Soldering |

Download VCF4-1000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
VCF4-1000 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

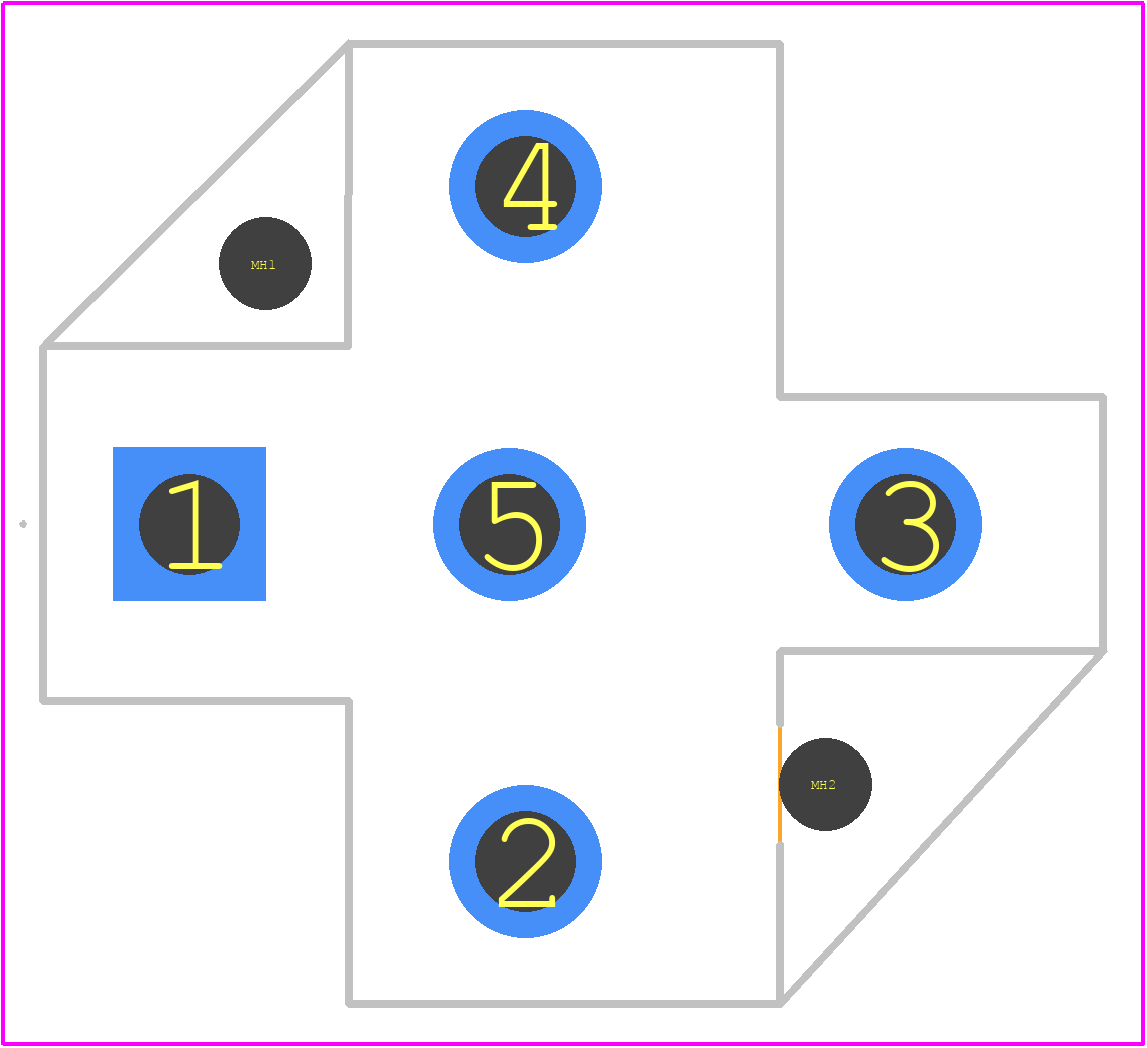

VCF4-1000 - TE Connectivity PCB footprint - Other - Other - VCF4-1000-1
click to zoom
3D Models
VCF4-1000 - TE Connectivity - 3D model - Other - VCF4-1000-1
click to zoom

VCF4-1000 Details

  • Manufacturer Part Number:

    VCF4-1000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.57

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • Device Socket Type:

    IC SOCKET

  • Number of Contacts:

    1

  • Termination Type:

    SOLDER

VCF4-1000 Frequently Asked Questions (FAQs)

  • The recommended torque for the VCF4-1000 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs).
  • Yes, the VCF4-1000 is designed to withstand high-vibration environments and is suitable for use in applications with vibration levels up to 10g.
  • The operating temperature range of the VCF4-1000 is -40°C to 125°C (-40°F to 257°F).
  • Yes, the VCF4-1000 is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The maximum current rating of the VCF4-1000 is 1A per contact.
