VCNL3020-GS08 - Vishay

Description: Fully Integrated Proximity Sensor with Infrared Emitter, I 2C Interface, and Interrupt Function

Download VCNL3020-GS08 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

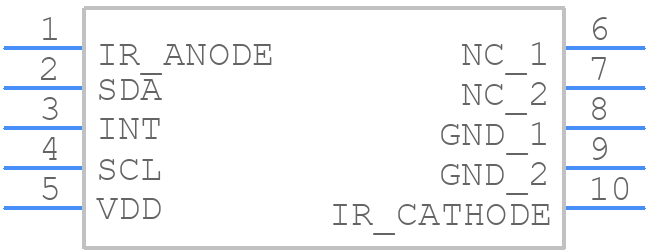

VCNL3020-GS08 - Vishay - PCB symbol
click to zoom
PCB Footprints
VCNL3020-GS08 - Vishay PCB footprint - Other - Other - VCNL3020
click to zoom
3D Models
VCNL3020-GS08 - Vishay - 3D model - Other - VCNL3020
click to zoom

VCNL3020-GS08 Details

  • Manufacturer Part Number:

    VCNL3020-GS08

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Body Breadth:

    2.4 mm

  • Body Height:

    0.83 mm

  • Body Length or Diameter:

    4.9 mm

  • Measurement Range-Max (mm):

    200 mm

  • Measurement Range-Min (mm):

    1 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Current-Max:

    4 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Interface Type:

    I2C INTERFACE

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    PROXIMITY SENSOR,PHOTOELECTRIC,REFLECTIVE

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.5 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

VCNL3020-GS08 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the VCNL3020-GS08 is 2.5V to 3.6V.
  • The VCNL3020-GS08 has a built-in ambient light cancellation circuit that helps to reduce interference from ambient light sources.
  • The maximum detection distance of the VCNL3020-GS08 is approximately 20 cm (7.9 in) for a reflective object.
  • Yes, the VCNL3020-GS08 can operate in low-light or dark environments, as it uses a built-in infrared LED emitter to illuminate the target object.
  • The VCNL3020-GS08 can detect multiple objects in the detection area, but it will only report the closest object. If multiple objects are at the same distance, the sensor will report the object with the highest reflectivity.
