A good PCB layout for the VCNL3030X01-GS08 involves keeping the sensor away from high-frequency signals, using a solid ground plane, and minimizing the distance between the sensor and the microcontroller. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the sensor's pins should be connected to the microcontroller using short, direct traces.
Calibration involves adjusting the sensor's sensitivity to account for variations in the environment and the target object. This can be done by taking multiple readings with the target object at different distances and adjusting the threshold values accordingly. The datasheet provides a calibration procedure, but it may require some trial and error to achieve optimal results.
While the datasheet specifies an operating temperature range of -40°C to 105°C, it's essential to note that the sensor's performance may degrade at extreme temperatures. For optimal performance, it's recommended to operate the sensor within a temperature range of 0°C to 70°C.
While the VCNL3030X01-GS08 is primarily designed for proximity detection, it can be used for gesture recognition and other advanced applications with additional processing and algorithms. However, this may require more complex software development and may not be supported by the manufacturer's standard libraries.
Noise and interference can be handled using various techniques such as filtering, averaging, and thresholding. Additionally, using a shielded cable and a good PCB layout can help minimize noise and interference. It's also essential to ensure that the sensor is properly grounded and that the power supply is clean and stable.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VCNL3030X01-GS08 Overview

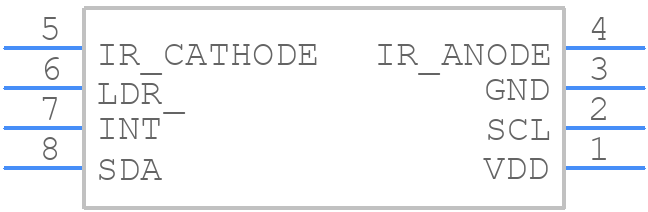

Use the download button to access the VCNL3030X01-GS08 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VCNL3,
or try a keyword search, such as Proximity Sensors
