VCNL4020-GS08 - Vishay

Description: Proximity/Ambient Light Sensor, IR, I2C

Download VCNL4020-GS08 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

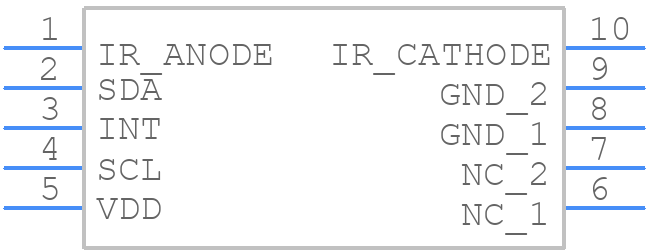

VCNL4020-GS08 - Vishay - PCB symbol
click to zoom
PCB Footprints
VCNL4020-GS08 - Vishay PCB footprint - Other - Other - VCNL4020-GS08-3
click to zoom
3D Models
VCNL4020-GS08 - Vishay - 3D model - Other - VCNL4020-GS08-3
click to zoom

VCNL4020-GS08 Details

  • Manufacturer Part Number:

    VCNL4020-GS08

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    4.90 X 2.40 MM, 0.83 MM HEIGHT, GREEN, SMD-10

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Body Breadth:

    2.4 mm

  • Body Height:

    0.83 mm

  • Body Length or Diameter:

    4.9 mm

  • Measurement Range-Max (mm):

    200 mm

  • Measurement Range-Min (mm):

    1 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Current-Max:

    0.002 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Interface Type:

    I2C INTERFACE

  • Output Type:

    DIGITAL OUTPUT

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    PROXIMITY SENSOR,PHOTOELECTRIC,REFLECTIVE

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.5 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

VCNL4020-GS08 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the VCNL4020-GS08 is 2.5V to 3.6V.
  • The VCNL4020-GS08 has a built-in ambient light cancellation circuit that helps to reduce interference from ambient light sources.
  • The maximum distance that the VCNL4020-GS08 can detect proximity is approximately 20 cm (7.9 in).
  • Yes, the VCNL4020-GS08 can operate in low-light or dark environments, as it uses a built-in infrared LED to emit light for proximity detection.
  • The VCNL4020-GS08 is designed to detect proximity, not to count or distinguish between multiple objects or people. It will detect the closest object or person in the detection area.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VCNL4020-GS08 Overview

Use the download button to access the VCNL4020-GS08 schematic symbol, PCB footprint, and 3D model.
