A good PCB layout for the VCNL40301X01-GS08 should ensure that the sensor is placed away from high-frequency noise sources, and that the PCB traces carrying the I2C signals are short and well-shielded. Additionally, a ground plane under the sensor can help to reduce noise and improve performance.
Calibration of the VCNL40301X01-GS08 involves adjusting the sensor's sensitivity and threshold settings to optimize its performance in a specific application. This can be done by using the sensor's built-in calibration registers and adjusting them based on the specific use case and environmental conditions.
The VCNL40301X01-GS08 has an operating temperature range of -40°C to 105°C, making it suitable for use in a wide range of applications, including automotive, industrial, and consumer electronics.
Yes, the VCNL40301X01-GS08 can be used for gesture recognition applications due to its high sensitivity and fast response time. However, additional processing and algorithms may be required to interpret the sensor data and detect specific gestures.
Yes, the VCNL40301X01-GS08 is compatible with 1.8V logic levels, making it suitable for use in low-voltage applications. However, it's recommended to check the specific voltage levels and interface requirements of the microcontroller or other components in the system.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VCNL40301X01-GS08 Overview

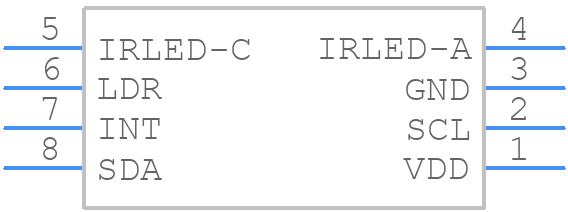

Use the download button to access the VCNL40301X01-GS08 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VCNL4,
or try a keyword search, such as Proximity Sensors
