VCNL4040M3OE - Vishay

Description: Fully Integrated Proximity and Ambient Light Sensor with Infrared Emitter, I2C Interface, and Interrupt Function

Download VCNL4040M3OE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

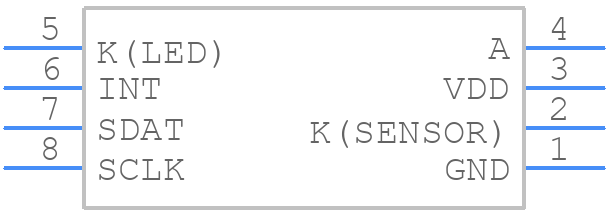

VCNL4040M3OE - Vishay - PCB symbol
click to zoom
PCB Footprints
VCNL4040M3OE - Vishay PCB footprint - Other - Other - VCNL4040M3OE-2
click to zoom
3D Models
VCNL4040M3OE - Vishay - 3D model - Other - VCNL4040M3OE-2
click to zoom

VCNL4040M3OE Details

  • Manufacturer Part Number:

    VCNL4040M3OE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Body Breadth:

    2 mm

  • Body Height:

    1.1 mm

  • Body Length or Diameter:

    4 mm

  • Measurement Range-Max (mm):

    200 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Current-Max:

    0.3 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    I2C INTERFACE

  • Package Shape/Style:

    RECTANGULAR

  • Response Time:

    1 µs

  • Sensors/Transducers Type:

    PROXIMITY SENSOR,PHOTOELECTRIC,REFLECTIVE

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.5 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

VCNL4040M3OE Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the VCNL4040M3OE is 2.5V to 3.6V.
  • The VCNL4040M3OE has a built-in ambient light cancellation circuit that helps to reduce interference from ambient light sources.
  • The typical response time of the VCNL4040M3OE is around 15ms.
  • Yes, the VCNL4040M3OE can operate in low-light environments, but its sensitivity may be reduced. It is recommended to use an external LED driver to increase the IR LED current for better performance in low-light conditions.
  • The VCNL4040M3OE uses a proprietary algorithm to detect the closest object in its detection range. If multiple objects are present, the sensor will detect the closest one.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VCNL4040M3OE Overview

Use the download button to access the VCNL4040M3OE schematic symbol, PCB footprint, and 3D model.
