VCP24US15 - XP POWER

Description: XP POWER - VCP24US15 - AC/DC PCB Mount Power Supply (PSU), ITE & Medical, 1 Output, 24 W, 15 V, 1.6 A

Download VCP24US15 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
VCP24US15 - XP POWER - PCB symbol
click to zoom
PCB Footprints

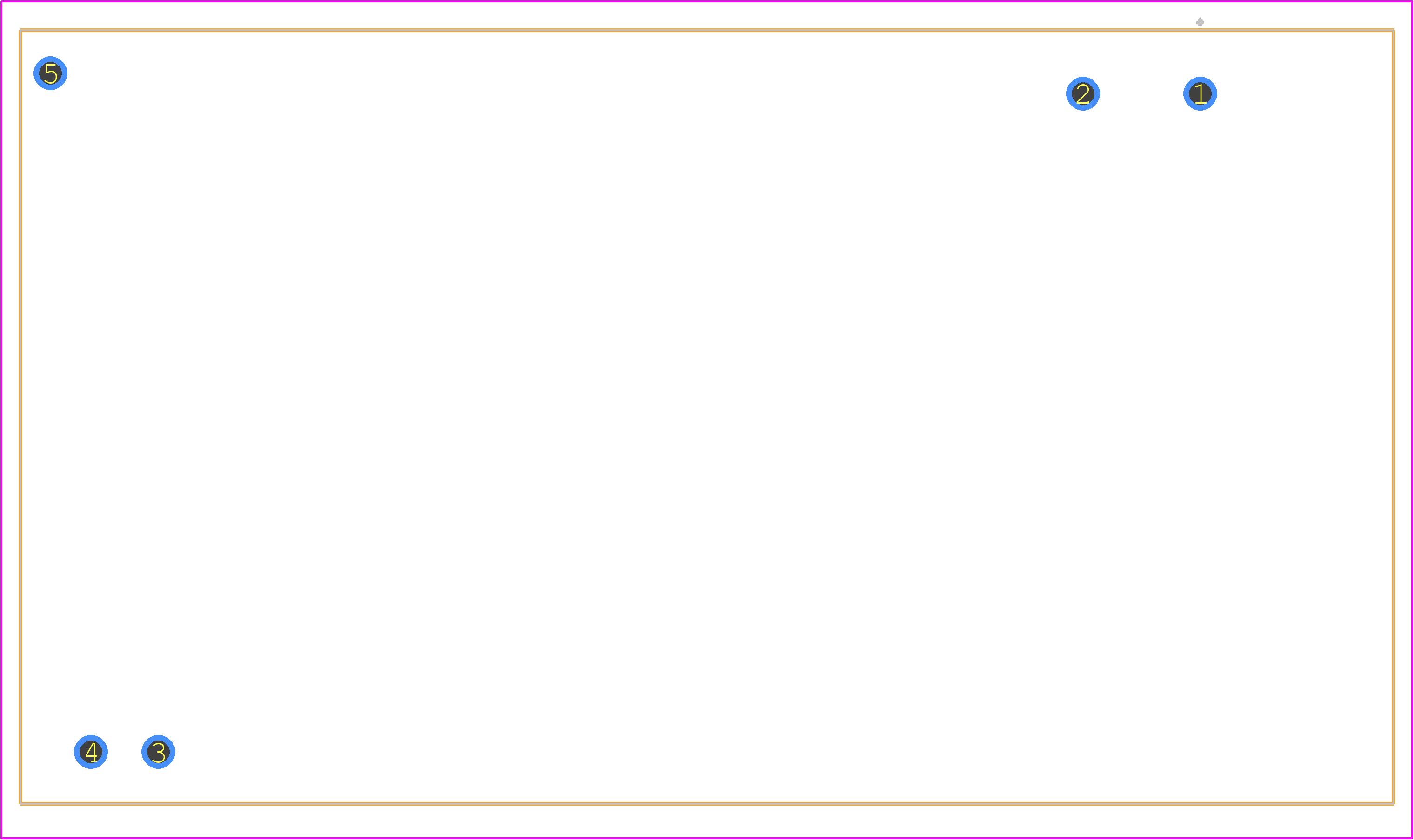

VCP24US15 - XP POWER PCB footprint - Other - Other - VCP24US15_1
click to zoom
3D Models
VCP24US15 - XP POWER - 3D model - Other - VCP24US15_1
click to zoom

VCP24US15 Details

  • Manufacturer Part Number:

    VCP24US15

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    0

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VCP24US15 Overview

Use the download button to access the VCP24US15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VCP24, or try a keyword search, such as Power Supply Modules
