Part Image

VCP24US24 - XP POWER

Description: Open Frame AC DC Converters 1 Output 24V 1A 90 ~ 264 VAC Input

Download VCP24US24 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
VCP24US24 - XP POWER - PCB symbol
click to zoom

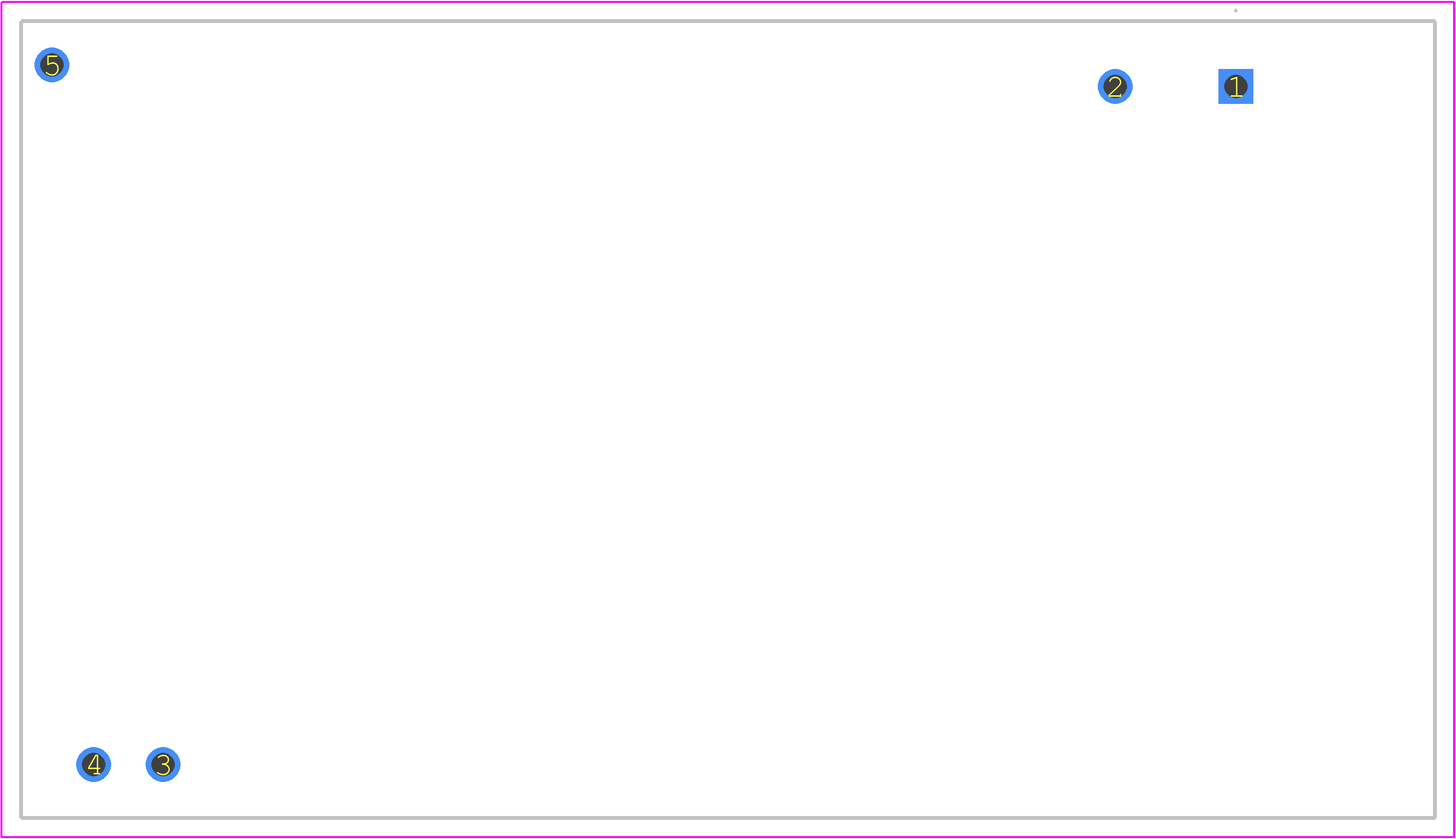

PCB Footprints
VCP24US24 - XP POWER PCB footprint - Other - Other - VCP24US24-2
click to zoom
3D Models
VCP24US24 - XP POWER - 3D model - Other - VCP24US24-2
click to zoom

VCP24US24 Details

  • Manufacturer Part Number:

    VCP24US24

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    0

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

VCP24US24 Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the VCP24US24 is 0.1uF to 10uF. Exceeding this range may affect the stability of the output voltage.
  • The VCP24US24 is rated for operation up to 80°C ambient temperature, but derating is required above 60°C. Consult the datasheet for derating curves and ensure proper thermal management.
  • The VCP24US24 meets various safety certifications, including UL, EN, and IEC. However, specific certifications may require additional testing or documentation. Consult with XP Power or a certified test house to ensure compliance with your specific requirements.
  • The recommended input fuse rating for the VCP24US24 is 1A to 5A, depending on the input voltage and current requirements. Consult the datasheet and application notes for specific guidance.
  • Yes, multiple VCP24US24 modules can be paralleled to increase output power, but ensure that the modules are identical and properly synchronized to avoid oscillations and instability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VCP24US24 Overview

Use the download button to access the VCP24US24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VCP24, or try a keyword search, such as Power Supply Modules
