A good PCB layout for the VEML60311X00 involves keeping the sensor away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the sensor and the microcontroller. A 4-layer PCB with a dedicated analog ground layer is recommended.
The VEML60311X00 does not require calibration. It is a digital ambient light sensor with a built-in ADC and calibration data stored in the device. However, you may need to adjust the gain and offset settings in your microcontroller to match your specific application requirements.
The VEML60311X00 can operate from -40°C to 125°C, but the accuracy of the ambient light measurement may degrade at extreme temperatures. For optimal performance, it is recommended to operate the device within the -20°C to 85°C range.
Yes, the VEML60311X00 is designed to operate in a wide range of humidity conditions, from 5% to 95% relative humidity. However, it is recommended to follow proper PCB design and assembly practices to prevent moisture ingress and ensure reliable operation.
The typical response time of the VEML60311X00 is around 2.5 ms, which is the time it takes for the sensor to settle to within 10% of the final value after a step change in ambient light. This response time can be affected by the gain setting and the sampling rate.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VEML60311X00 Overview

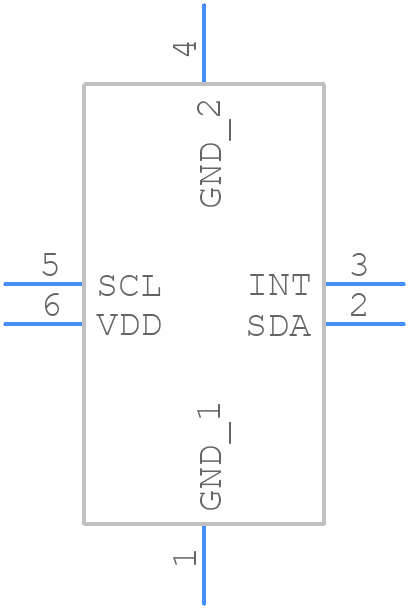

Use the download button to access the VEML60311X00 schematic symbol, PCB footprint, and 3D model.
