A good PCB layout for VEML6046X00 involves keeping the sensor away from high-frequency components, using a solid ground plane, and minimizing the distance between the sensor and the microcontroller. A 4-layer PCB with a dedicated ground plane is recommended.
Calibration of VEML6046X00 involves adjusting the sensitivity of the sensor to match the specific application requirements. This can be done by adjusting the gain settings, using an external resistor, or through software calibration using a microcontroller.
The VEML6046X00 has an operating temperature range of -40°C to 85°C. However, the accuracy of the sensor may degrade at extreme temperatures, and it's recommended to operate within the -20°C to 70°C range for optimal performance.
No, VEML6046X00 is not designed for UV index measurement. It's a high-sensitivity ambient light sensor, and its spectral response is tailored for visible light detection. For UV index measurement, a dedicated UV sensor like VEML6075 is recommended.
VEML6046X00 can be interfaced with a microcontroller using an I2C or SMBus interface. The sensor has a 16-bit digital output, and the microcontroller can read the data using a standard I2C or SMBus protocol.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VEML6046X00 Overview

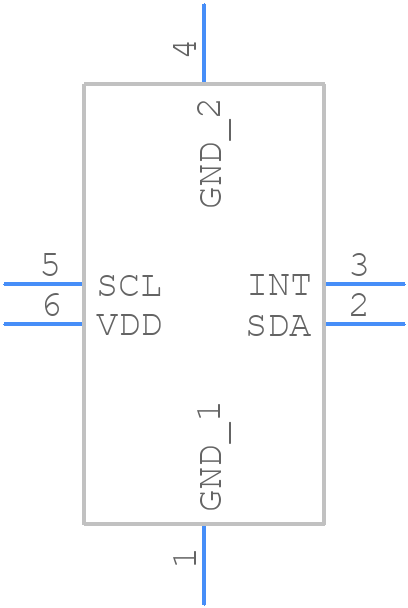

Use the download button to access the VEML6046X00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VEML6,
or try a keyword search, such as Other Sensors/Transducers
