VER2923-103KL Frequently Asked Questions (FAQs)

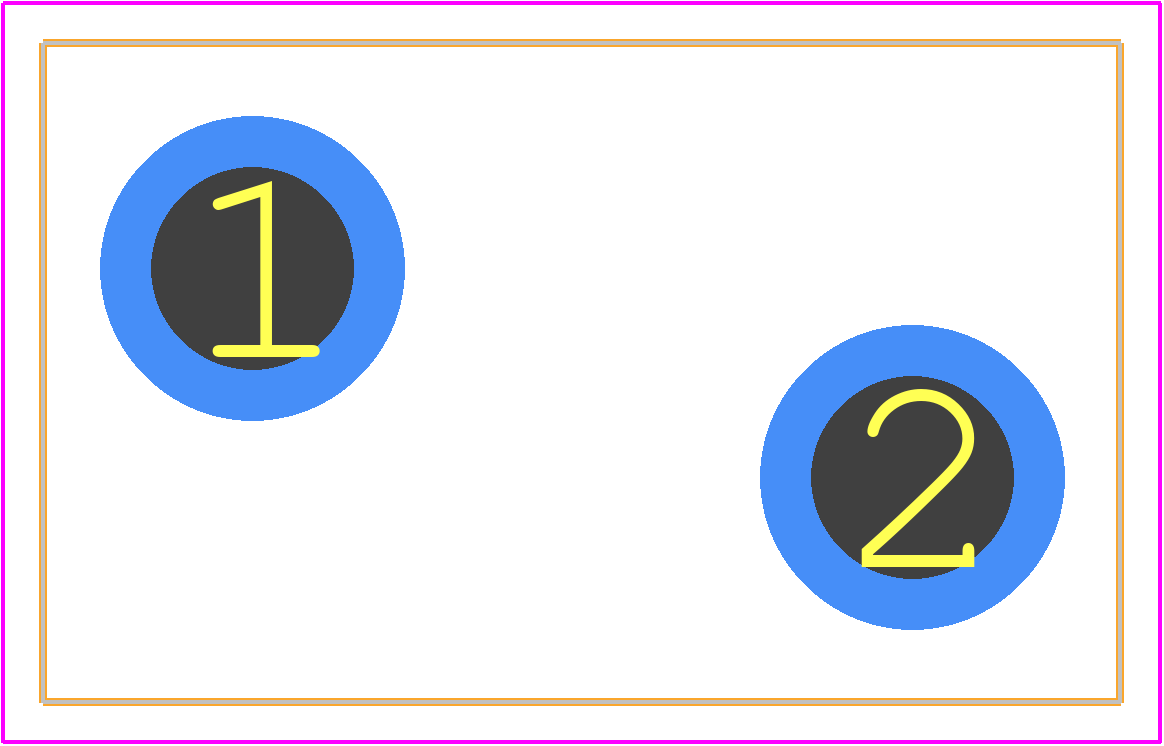

• What is the recommended land pattern for the VER2923-103KL?
  The recommended land pattern for the VER2923-103KL is a rectangular pad with a size of 2.5 mm x 1.6 mm, with a non-solder mask defined (NSMD) pad shape. This ensures proper soldering and minimizes the risk of solder bridging.
• How do I handle the VER2923-103KL's sensitivity to PCB layout and proximity to other components?
  To minimize the impact of PCB layout and proximity to other components, keep the VER2923-103KL at least 1.5 mm away from other components, and avoid running high-frequency signals or power traces underneath the inductor. Use a solid ground plane under the inductor to reduce electromagnetic interference (EMI).
• What is the maximum operating temperature range for the VER2923-103KL?
  The VER2923-103KL is rated for operation from -40°C to +125°C. However, the inductor's performance may degrade at extreme temperatures. It's essential to consider the application's temperature range and potential thermal stresses when designing with this component.
• How do I ensure the VER2923-103KL meets my application's electromagnetic compatibility (EMC) requirements?
  To ensure EMC compliance, follow proper PCB layout and shielding techniques, such as using a shielded enclosure, minimizing loop areas, and keeping the inductor away from sensitive components. Additionally, consider using a common-mode choke or other EMI filtering components in conjunction with the VER2923-103KL.
• What is the recommended storage and handling procedure for the VER2923-103KL?
  Store the VER2923-103KL in a dry, cool place, away from direct sunlight and moisture. Handle the components by the body, avoiding touching the leads or electrical contacts. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage.
