The recommended land pattern for the VER2923-223KL is a rectangular pad with a size of 2.5 mm x 1.6 mm, with a non-solder mask defined (NSMD) pad shape.
To minimize the impact of PCB layout and proximity to other components, keep the VER2923-223KL at least 1.5 mm away from other components, and use a solid ground plane underneath the inductor. Avoid routing high-frequency signals near the inductor.
The VER2923-223KL has an operating temperature range of -40°C to +125°C, with a maximum storage temperature range of -40°C to +150°C.
Use a soldering iron with a temperature of 260°C to 280°C, and apply a small amount of solder paste to the pads. Ensure the inductor is properly aligned with the pads, and use a soldering technique that minimizes thermal stress.
The VER2923-223KL has a DC bias tolerance of up to 1.5 A, but it's recommended to keep the DC bias below 1 A to ensure optimal performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VER2923-223KL Overview

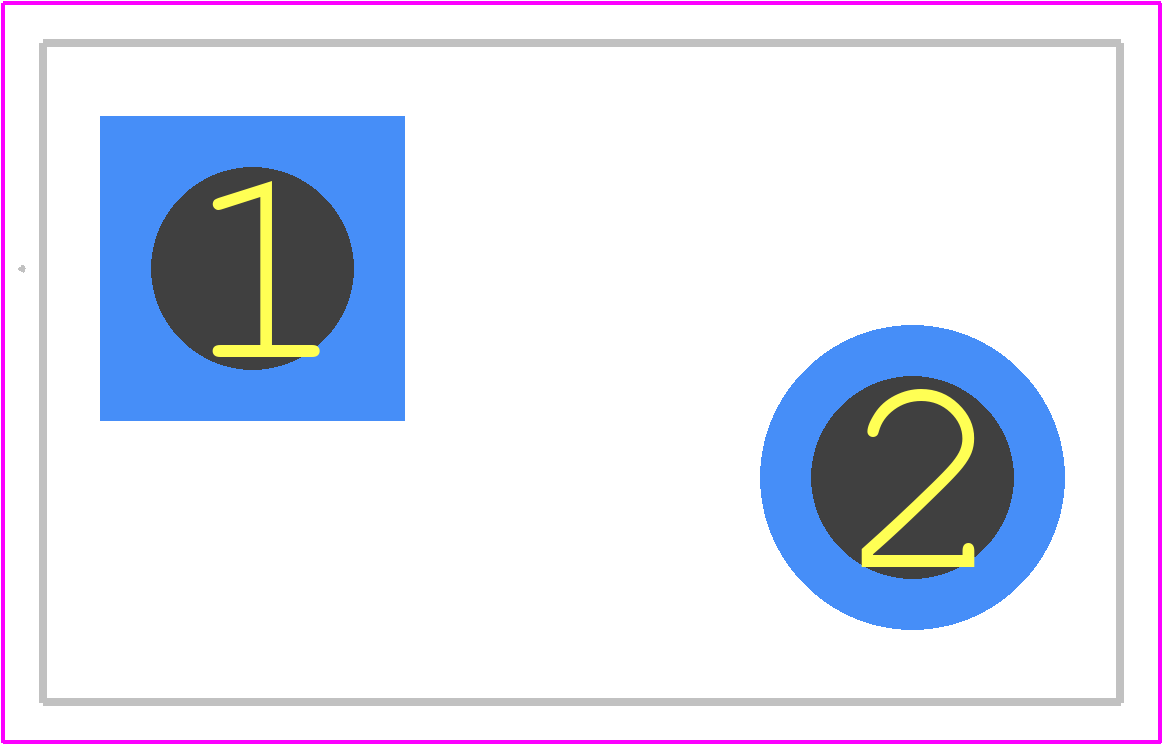

Use the download button to access the VER2923-223KL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VER29,
or try a keyword search, such as Fixed Inductors
About COILCRAFT
Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
