The recommended land pattern for VESD05A5A-HSF-GS08 can be found in the Vishay Intertechnologies' application note AN42171, which provides detailed guidelines for PCB layout and assembly.
To prevent damage during PCB assembly, it's recommended to use a no-clean or low-residue flux, and avoid exposing the device to high temperatures (>260°C) or excessive moisture. Additionally, handle the device by the package body, not the leads, to prevent mechanical stress.
While the VESD05A5A-HSF-GS08 is designed for ESD protection, it's not optimized for high-frequency applications. The device's parasitic capacitance and inductance may affect high-frequency signal integrity. For high-frequency applications, consider using a device specifically designed for high-frequency ESD protection.
The correct orientation of the VESD05A5A-HSF-GS08 is indicated by the marking on the device package. The marking should face upwards, and the leads should be aligned with the PCB pads according to the recommended land pattern.
Yes, the VESD05A5A-HSF-GS08 is compatible with lead-free soldering processes, such as SAC305 or SnAgCu. However, ensure that the soldering process is within the recommended temperature range and duration to prevent damage to the device.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VESD05A5A-HSF-GS08 Overview

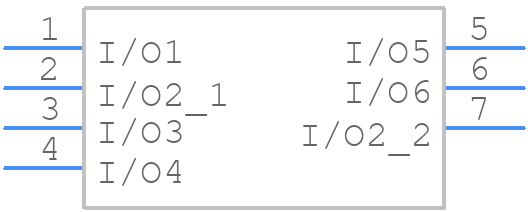

Use the download button to access the VESD05A5A-HSF-GS08 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VESD0,
or try a keyword search, such as Transient Suppressors
