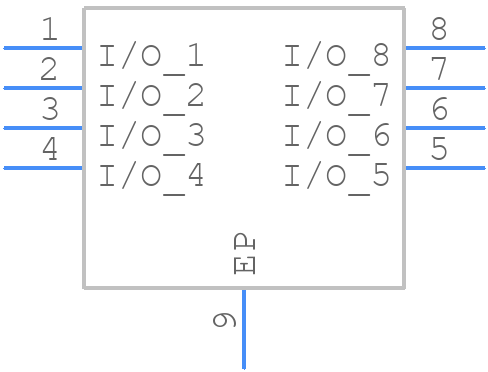

VESD05A8A-HNH-GS08 - Vishay

VESD05A8A-HNH-GS08 Details

• Manufacturer Part Number:

  VESD05A8A-HNH-GS08

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.50

• Manufacturer:

  Vishay Intertechnologies

• YTEOL:

  0

• Additional Feature:

  LOW CAPACITANCE

• Breakdown Voltage-Max:

  8 V

• Breakdown Voltage-Min:

  6 V

• Breakdown Voltage-Nom:

  7 V

• Case Connection:

  ANODE

• Clamping Voltage-Max:

  13 V

• Configuration:

  COMMON ANODE, 8 ELEMENTS

• Diode Element Material:

  SILICON

• Diode Type:

  TRANS VOLTAGE SUPPRESSOR DIODE

• JESD-30 Code:

  R-PDSO-N8

• Moisture Sensitivity Level:

  1

• Non-rep Peak Rev Power Dis-Max:

  65 W

• Number of Elements:

  8

• Number of Terminals:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Polarity:

  BIDIRECTIONAL

• Qualification Status:

  Not Qualified

• Rep Pk Reverse Voltage-Max:

  5 V

• Surface Mount:

  YES

• Technology:

  AVALANCHE

• Terminal Form:

  NO LEAD

• Terminal Position:

  DUAL
