VFM-10A - CUI Inc.

Description: Power Line Filters 0-75Vin 10A DC EMI Filter

Download VFM-10A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

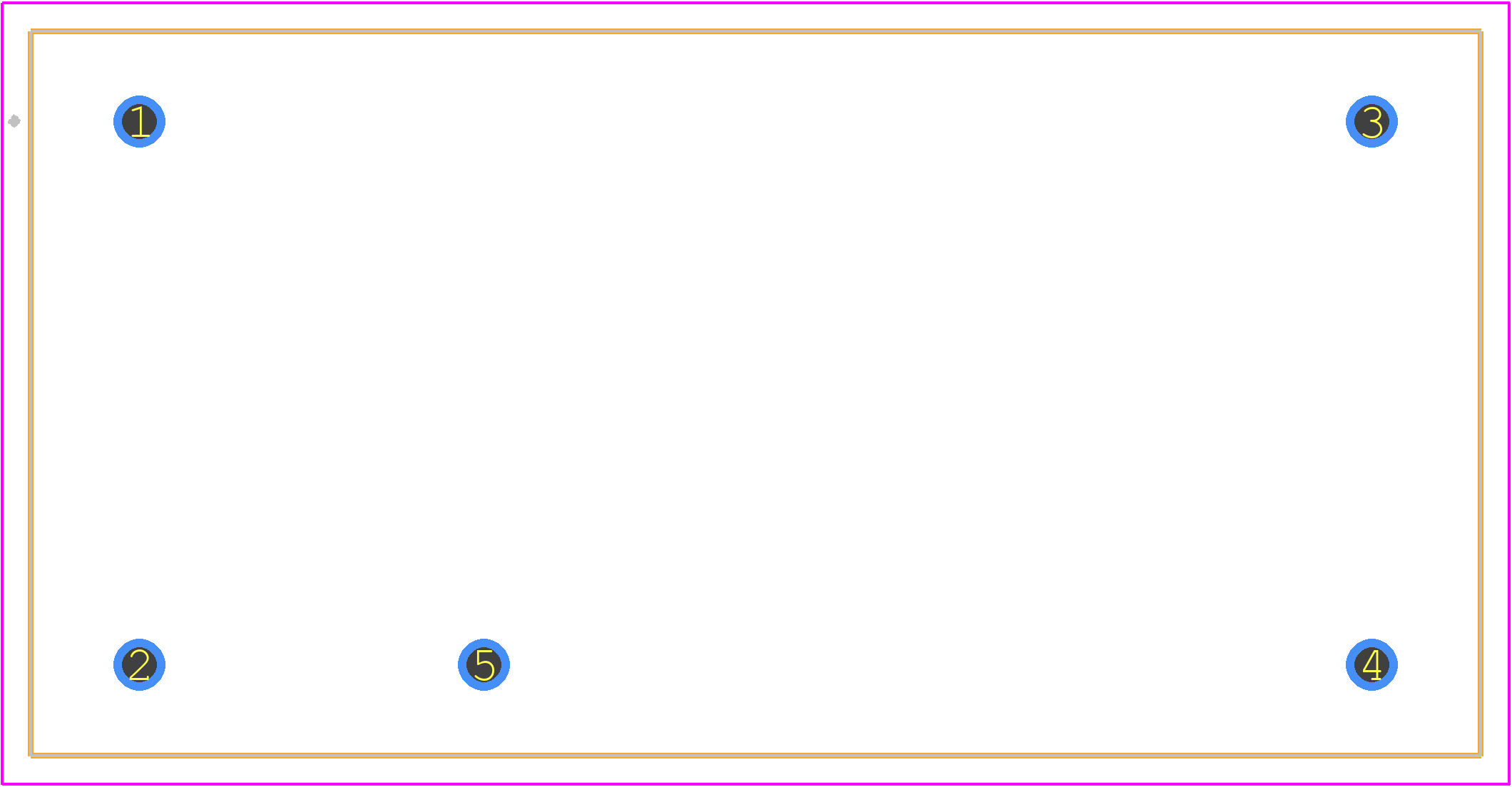

PCB Footprints
VFM-10A - CUI Inc. PCB footprint - Other - Other - VFM-10A-1
click to zoom
3D Models
VFM-10A - CUI Inc.  - 3D model - Other - VFM-10A-1
click to zoom

VFM-10A Details

  • Manufacturer Part Number:

    VFM-10A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    CUI Inc

  • YTEOL:

    6.1

  • DC Resistance-Max:

    0.016 Ω

  • Filter Type:

    DATA LINE FILTER MODULE

  • Height:

    11.7 mm

  • Length:

    50.8 mm

  • Mounting Type:

    PCB MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Rated Current:

    10 A

  • Rated Voltage:

    75 V

  • Width:

    25.4 mm

VFM-10A Frequently Asked Questions (FAQs)

  • A good PCB layout for the VFM-10A involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the module. Additionally, it's recommended to use a low-ESR capacitor for the output filter capacitor.
  • To ensure the VFM-10A operates within its specified temperature range, make sure to provide adequate airflow around the module, avoid blocking the airflow vents, and keep the ambient temperature within the specified range of -40°C to +85°C.
  • The recommended input capacitor value for the VFM-10A is 10uF to 22uF, with a voltage rating of at least 25V. A low-ESR ceramic or electrolytic capacitor is recommended.
  • Yes, the VFM-10A is designed to withstand high-vibration environments. However, it's recommended to follow proper mounting and screw torque procedures to ensure the module is securely fastened to the PCB or chassis.
  • To troubleshoot issues with the VFM-10A, start by checking the input voltage, output voltage, and output current. Verify that the input voltage is within the specified range, and check for any signs of overheating or physical damage. Consult the datasheet and application notes for more detailed troubleshooting guidance.
