A good PCB layout for the VFM-20A involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the module. Additionally, it's recommended to use a low-ESR capacitor for the output filter capacitor.
To ensure the VFM-20A operates within its specified temperature range, make sure to provide adequate airflow around the module, avoid blocking the airflow vents, and keep the ambient temperature within the specified range of -40°C to +85°C.
The recommended input capacitor value for the VFM-20A is 10uF to 22uF, with a voltage rating of at least 25V. A low-ESR ceramic or electrolytic capacitor is recommended, such as the X5R or X7R dielectric type.
Yes, the VFM-20A can be used in a redundant or parallel configuration, but it's essential to ensure that the modules are synchronized and that the output voltages are matched to prevent current circulating between the modules.
To troubleshoot common issues with the VFM-20A, check the input voltage, output load, and ambient temperature. Verify that the module is properly soldered and that the input and output capacitors are of the correct value and type. Also, ensure that the module is not overheating due to inadequate airflow or high ambient temperatures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VFM-20A Overview

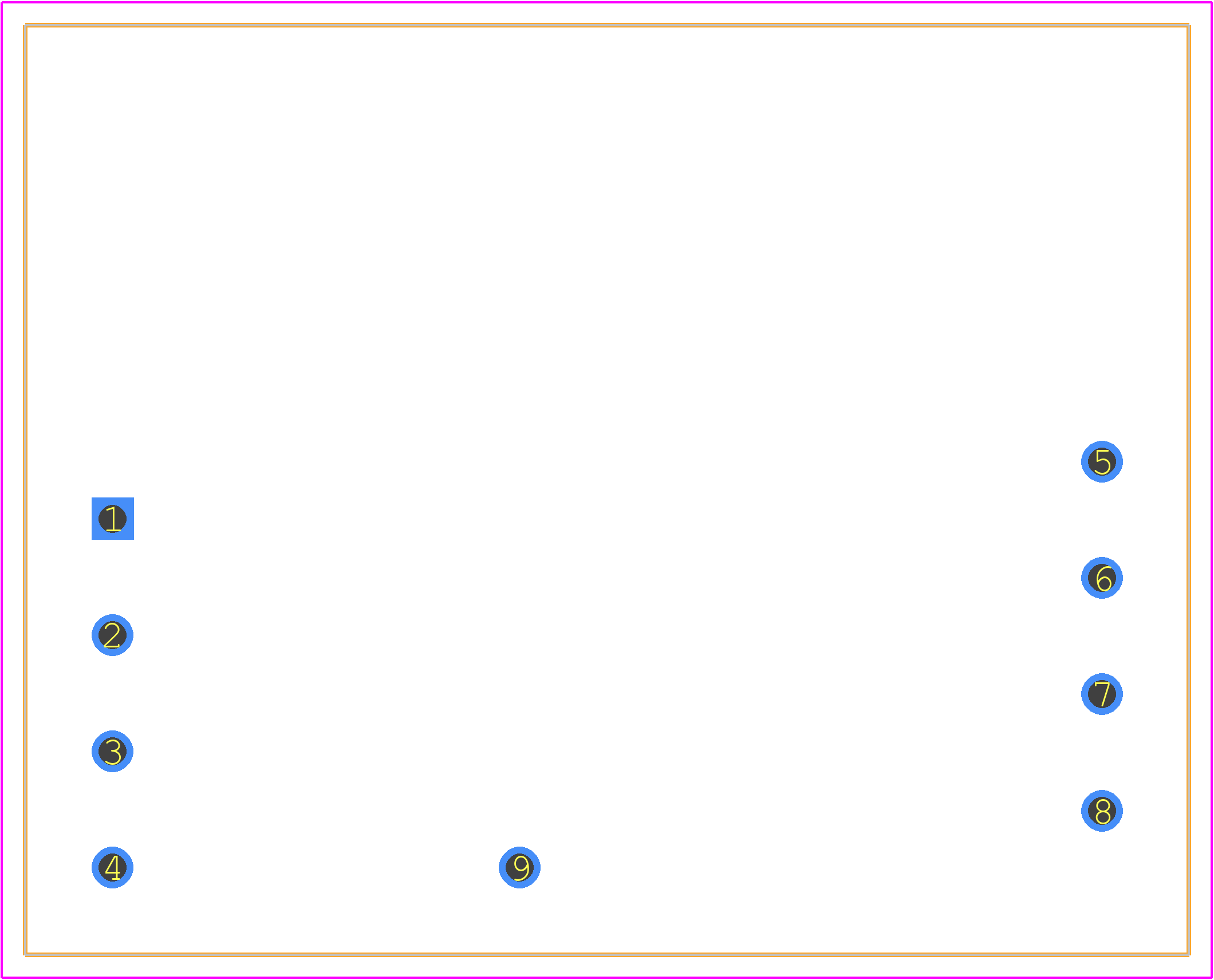

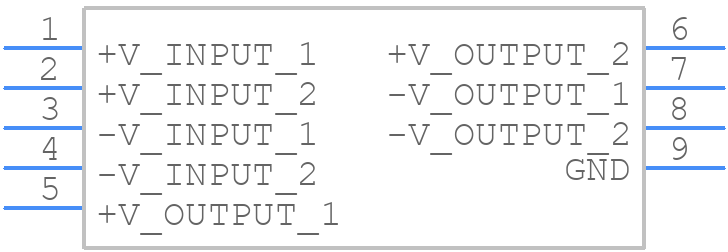

Use the download button to access the VFM-20A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VFM-2,
or try a keyword search, such as Data Line Filters
