VFS6VD81E221T51B - Murata Electronics

Description: Murata VFS6V Series, Signal Filter, 25 V dc, 6A Through Hole, Radial Termination, 8 x 2.54 x 10.5mm

Download VFS6VD81E221T51B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

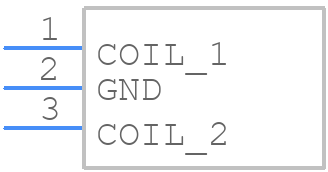

VFS6VD81E221T51B - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

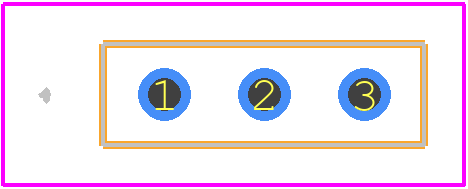

VFS6VD81E221T51B - Murata Electronics PCB footprint - Other - Other - VFS6VD81E221T51B-1
click to zoom
3D Models
VFS6VD81E221T51B - Murata Electronics - 3D model - Other - VFS6VD81E221T51B-1
click to zoom

VFS6VD81E221T51B Details

  • Manufacturer Part Number:

    VFS6VD81E221T51B

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    INCRIMP LEAD TYPE

  • Capacitance:

    220 µF

  • Filter Type:

    DATA LINE FILTER

  • Height:

    10.5 mm

  • Insulation Resistance-Min:

    0.5 MΩ

  • Length:

    8 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Number of Functions:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BULK

  • Rated Current:

    6 A

  • Rated Voltage:

    25 V

  • Terminal Finish:

    Tin (Sn) - Copper (Cu)

  • Width:

    2.54 mm

VFS6VD81E221T51B Frequently Asked Questions (FAQs)

  • The recommended land pattern for the VFS6VD81E221T51B can be found in the Murata Land Pattern Recommendation document, which provides guidelines for PCB layout and footprint design.
  • The VFS6VD81E221T51B has a maximum operating temperature of 125°C. Ensure proper thermal management by providing adequate heat dissipation through the PCB design, and consider using thermal vias or thermal pads if necessary.
  • The recommended soldering profile for the VFS6VD81E221T51B follows the JEDEC J-STD-020D.1 standard, with a peak temperature of 260°C and a dwell time of 30-45 seconds.
  • To ensure reliability in high-vibration environments, ensure that the PCB is properly secured, and consider using underfill or potting compounds to reinforce the component. Additionally, follow Murata's guidelines for vibration testing and simulation.
  • Handle the VFS6VD81E221T51B with ESD-protective equipment and follow proper ESD handling procedures to prevent damage. Ensure that the workspace and personnel are grounded, and use ESD-protective packaging and storage materials.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VFS6VD81E221T51B Overview

Use the download button to access the VFS6VD81E221T51B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VFS6V, or try a keyword search, such as Data Line Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
