VFS6VD81E221U31A - Murata Electronics

Description: LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel C = 220pF 6 A Radial - 3 Leads

Download VFS6VD81E221U31A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
VFS6VD81E221U31A - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

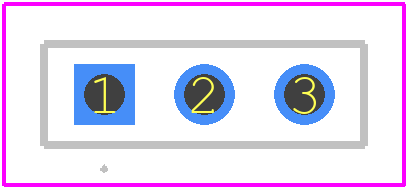

VFS6VD81E221U31A - Murata Electronics PCB footprint - Other - Other - VFS6VD81E221U31A-5
click to zoom
3D Models
VFS6VD81E221U31A - Murata Electronics - 3D model - Other - VFS6VD81E221U31A-5
click to zoom

VFS6VD81E221U31A Details

  • Manufacturer Part Number:

    VFS6VD81E221U31A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    INCRIMP LEAD TYPE

  • Capacitance:

    220 µF

  • Filter Type:

    DATA LINE FILTER

  • Height:

    10.5 mm

  • Insulation Resistance-Min:

    0.5 MΩ

  • JESD-609 Code:

    e1

  • Length:

    8 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Number of Functions:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    AMMO PACK

  • Rated Current:

    6 A

  • Rated Voltage:

    25 V

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Width:

    2.54 mm

VFS6VD81E221U31A Frequently Asked Questions (FAQs)

  • The recommended land pattern for the VFS6VD81E221U31A can be found in the Murata Land Pattern Recommendation document, which provides guidelines for PCB layout and footprint design.
  • To ensure reliability in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet, and to consider using thermal management techniques such as heat sinks or thermal interfaces.
  • The maximum allowable voltage for the VFS6VD81E221U31A is 50V, as specified in the datasheet. Exceeding this voltage may damage the component.
  • Yes, the VFS6VD81E221U31A is suitable for high-frequency applications up to 1 GHz. However, it is recommended to consult the datasheet and application notes for specific guidance on high-frequency design considerations.
  • The typical ESR value for the VFS6VD81E221U31A is around 0.1 ohms, as specified in the datasheet. However, this value may vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VFS6VD81E221U31A Overview

Use the download button to access the VFS6VD81E221U31A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VFS6V, or try a keyword search, such as Data Line Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
