TDK recommends following the recommended land pattern and PCB layout guidelines provided in the datasheet. Additionally, it's essential to ensure a solid ground plane, minimize signal trace lengths, and use a 4-layer PCB with a dedicated power plane to reduce noise and EMI.
To ensure the VGT12EEM-200S1A4 operates within its specified temperature range, provide adequate heat dissipation through a heat sink or thermal pad, and ensure good airflow around the component. Monitor the device's temperature using a thermocouple or thermal sensor, and implement thermal management strategies such as thermal throttling or shutdown if necessary.
TDK recommends following the soldering conditions specified in the datasheet, which include a peak temperature of 260°C, a soldering time of 10 seconds, and a preheating temperature of 120°C to 150°C. It's essential to use a soldering iron with a temperature control and a solder with a melting point above 217°C.
To prevent damage, store the VGT12EEM-200S1A4 in its original packaging or an electrostatic discharge (ESD) protective bag. Avoid exposing the device to extreme temperatures, humidity, or physical stress. During shipping, ensure the device is properly secured and cushioned to prevent mechanical shock and vibration.
To prevent ESD damage, handle the VGT12EEM-200S1A4 in an ESD-controlled environment, wear an ESD wrist strap or use an ESD mat, and ensure all equipment and tools are grounded. Avoid touching the device's pins or leads, and use ESD-safe packaging and storage materials.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VGT12EEM-200S1A4 Overview

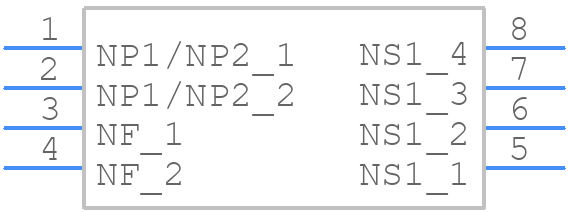

Use the download button to access the VGT12EEM-200S1A4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VGT12,
or try a keyword search, such as SMPS Transformers
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
