TDK provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic inductance, and reduce electromagnetic interference (EMI).
The VGT15SEFD-200S1A4 has a high power density, so thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and follow TDK's guidelines for thermal interface materials and mounting techniques to keep the component within its operating temperature range.
Derating curves are not always provided in the datasheet, but they can be obtained from TDK's application engineers or technical support. Derating curves help determine the component's performance at elevated temperatures, and applying them ensures the component operates within its safe operating area (SOA).
The selection of input and output capacitors depends on the specific application, operating frequency, and desired performance. TDK provides guidelines for capacitor selection in their application notes and design guides. It's essential to choose capacitors that meet the component's requirements for capacitance, ESR, and voltage rating.
TDK provides reliability data and lifespan expectations for their components, which can be obtained through their technical support or application engineers. The lifespan of the component depends on various factors, including operating conditions, temperature, and quality of the component.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VGT15SEFD-200S1A4 Overview

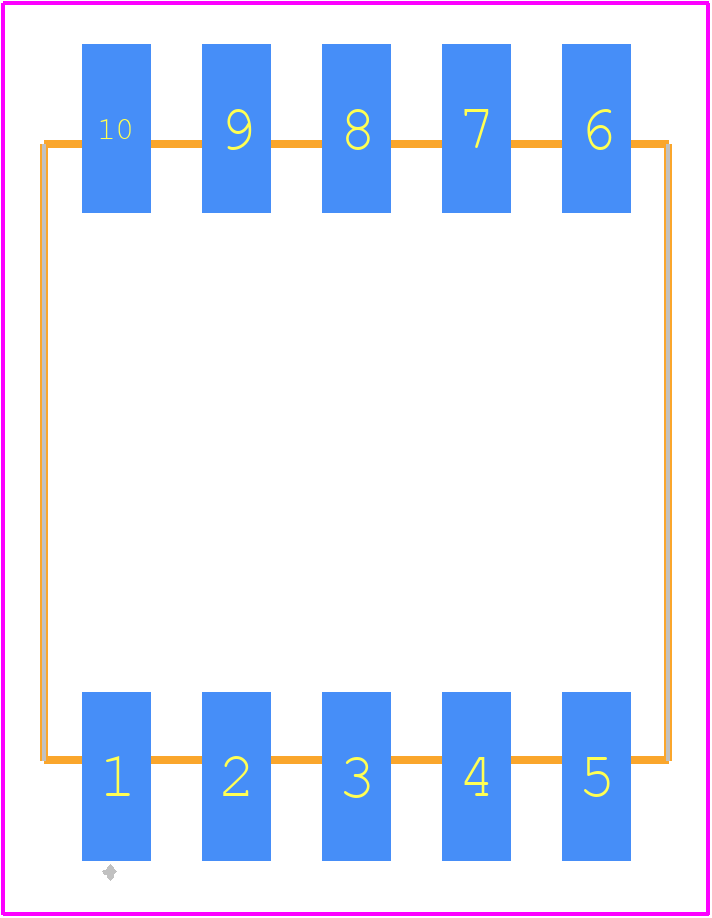

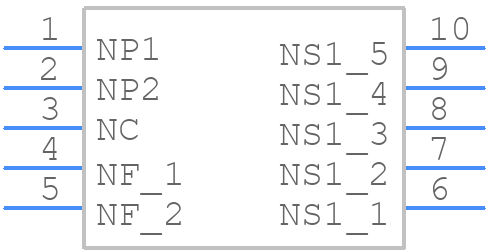

Use the download button to access the VGT15SEFD-200S1A4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VGT15,
or try a keyword search, such as SMPS Transformers
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
