TDK recommends following the recommended land pattern and PCB layout guidelines provided in the datasheet. Additionally, it's essential to ensure a solid ground plane, minimize signal trace lengths, and use a low-ESR capacitor for decoupling.
To ensure stability, follow the recommended output capacitor selection guidelines, ensure a minimum output capacitance of 10uF, and use a capacitor with a low ESR. Additionally, place the output capacitor close to the VOUT pin and use a low-inductance path to the capacitor.
The maximum allowed input voltage ripple is 10% of the input voltage. Exceeding this limit may affect the regulator's performance, causing output voltage fluctuations or instability. It's essential to ensure a stable input voltage source and use input capacitors with low ESR to minimize ripple.
The VGT15SEFD-250S4A7 is rated for operation up to 125°C. However, the output current and power dissipation must be derated according to the temperature derating curve provided in the datasheet. Ensure proper thermal management and heat sinking to maintain a safe operating temperature.
To minimize EMI, use a shielded enclosure, keep the input and output capacitors close to the regulator, and use a low-inductance path to the capacitors. Additionally, ensure proper PCB layout, use a common-mode choke, and follow good EMC design practices to minimize electromagnetic interference.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VGT15SEFD-250S4A7 Overview

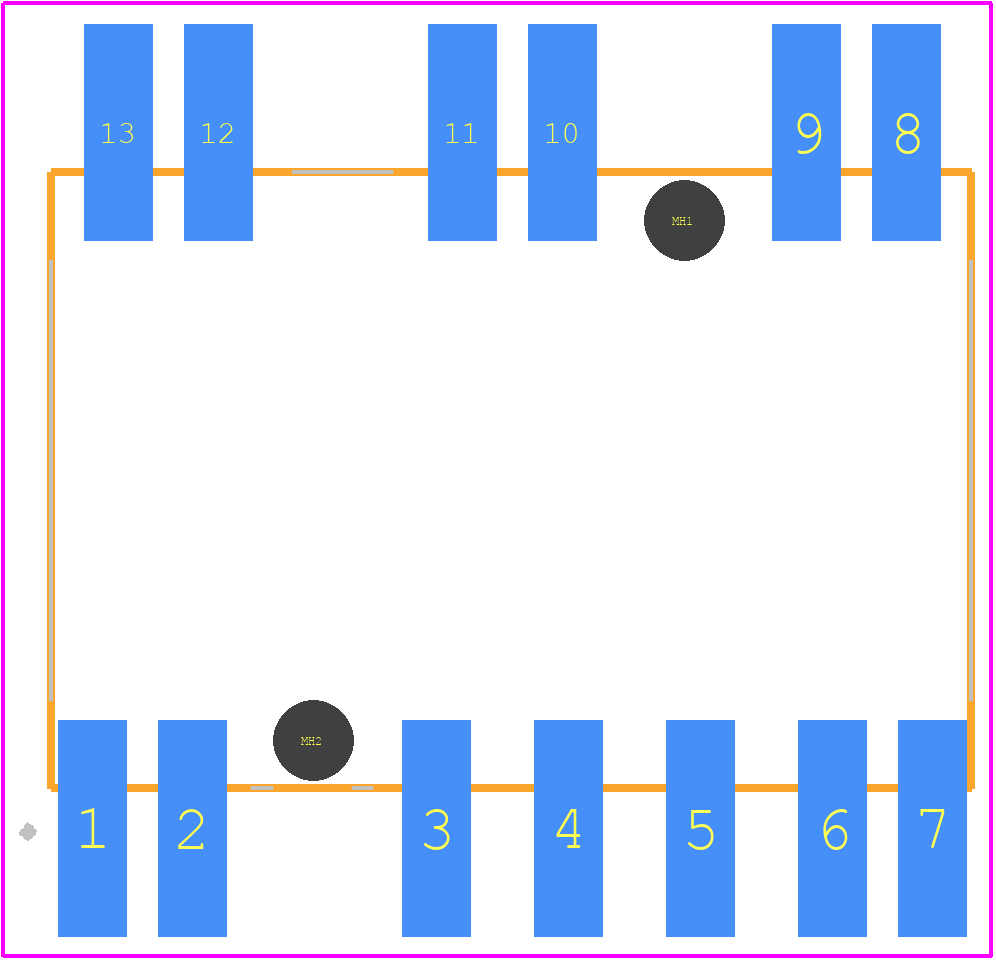

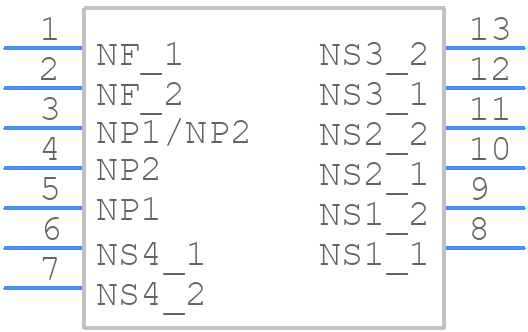

Use the download button to access the VGT15SEFD-250S4A7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VGT15,
or try a keyword search, such as SMPS Transformers
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
