VGT22EPC-200S6A12 - TDK

Description: Flyback Converters For For AC/DC Converters SMPS Transformer 2600Vrms Isolation Surface Mount

Download VGT22EPC-200S6A12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

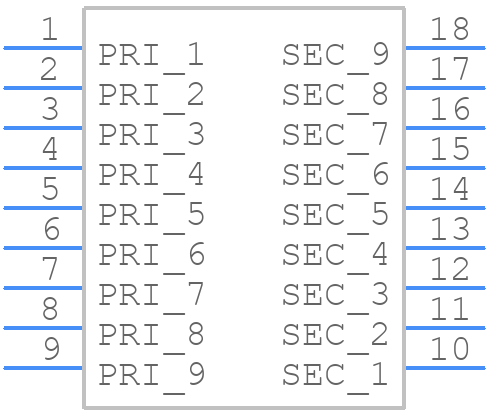

Symbol
VGT22EPC-200S6A12 - TDK - PCB symbol
click to zoom

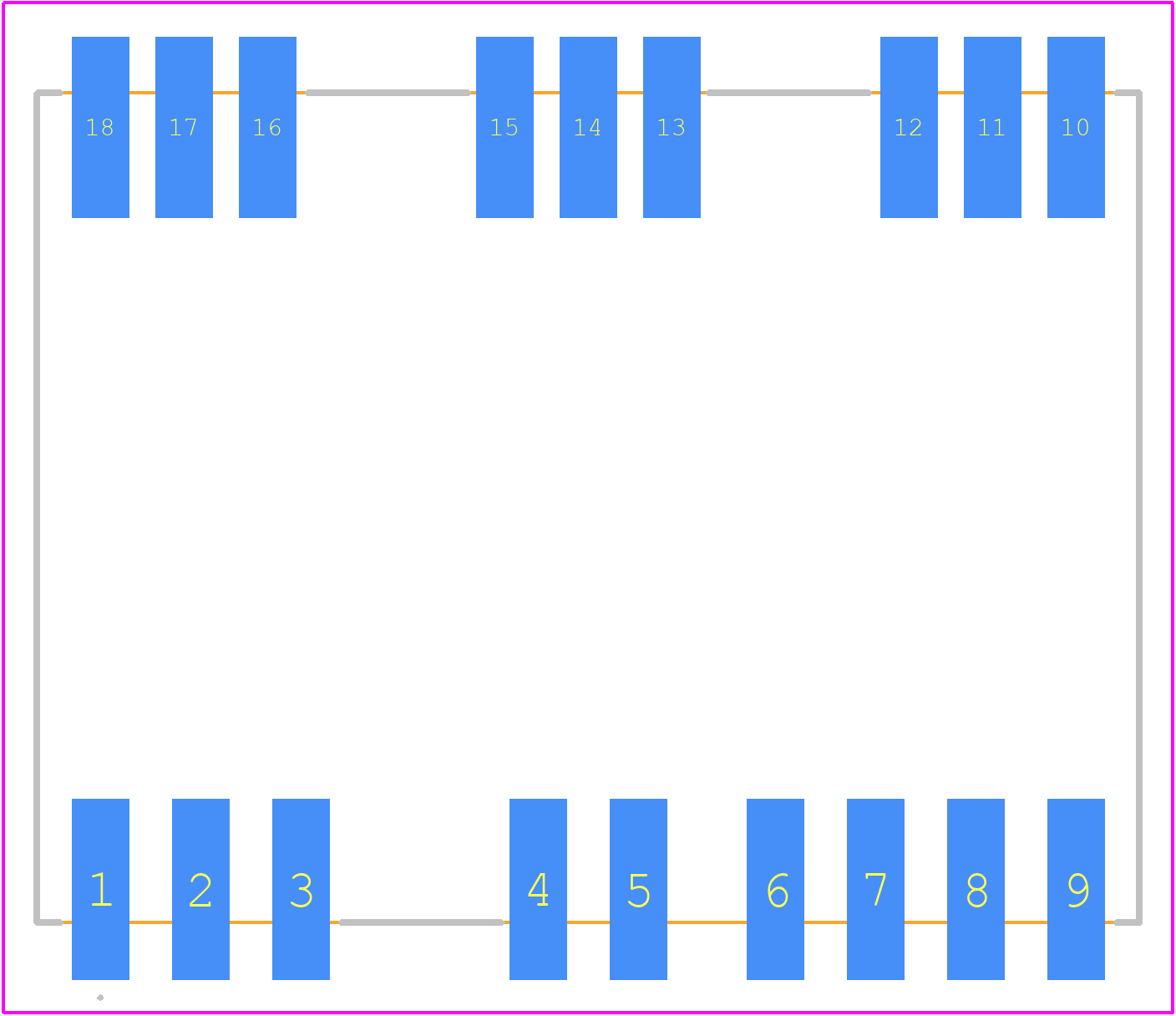

PCB Footprints
VGT22EPC-200S6A12 - TDK PCB footprint - Other - Other - VGT22EPC-200S6A12-4
click to zoom
3D Models
VGT22EPC-200S6A12 - TDK - 3D model - Other - VGT22EPC-200S6A12-4
click to zoom

VGT22EPC-200S6A12 Details

  • Manufacturer Part Number:

    VGT22EPC-200S6A12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    TDK Corporation

  • Additional Feature:

    HEIGHT DIMENSION INCLUDES TERMINAL ALSO

  • Approvals:

    AEC-Q200

  • Height:

    13.7 mm

  • Length:

    33 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    4

  • Operating Temperature-Max:

    130 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, EMBOSSED PLASTIC, 13 INCH

  • Primary Inductance:

    2.5 µH

  • Surface Mount:

    YES

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    24.8 mm

VGT22EPC-200S6A12 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the VGT22EPC-200S6A12 can be found in the TDK Corporation's application note or the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
  • Proper thermal management is crucial for the VGT22EPC-200S6A12. Ensure good thermal conductivity by using a thermal interface material (TIM) between the device and the heat sink. A heat sink with a thermal resistance of less than 10°C/W is recommended. Additionally, ensure good airflow around the device to prevent overheating.
  • The maximum operating temperature range for the VGT22EPC-200S6A12 is -40°C to 150°C. However, it's essential to note that the device's performance and reliability may degrade if operated at the extreme ends of this range. It's recommended to operate the device within a temperature range of -20°C to 125°C for optimal performance.
  • The VGT22EPC-200S6A12 is designed to withstand moderate vibration levels. However, it's essential to ensure that the device is properly secured to the PCB and that the PCB is designed to withstand the vibration levels. It's recommended to consult with a mechanical engineer to ensure that the device and PCB can withstand the expected vibration levels.
  • To prevent EMI with the VGT22EPC-200S6A12, ensure that the device is placed at least 10 mm away from other components that may generate electromagnetic radiation. Use a shielded enclosure and ensure that the PCB is designed with EMI mitigation in mind. Additionally, use EMI filters or shielding materials to prevent radiation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VGT22EPC-200S6A12 Overview

Use the download button to access the VGT22EPC-200S6A12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VGT22, or try a keyword search, such as SMPS Transformers

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
