The recommended PCB layout involves keeping the input and output capacitors close to the module, using a solid ground plane, and ensuring good airflow for heat dissipation. Thermal management involves mounting the module on a heat sink or using a thermal interface material to reduce thermal resistance.
To ensure EMC, use a metal enclosure, keep cables and wires away from the module, and use EMI filters or shielding on the input and output lines. Additionally, follow proper grounding and bonding techniques to minimize radiated emissions.
Derating curves are available from the manufacturer or can be calculated based on the module's thermal characteristics. Apply derating by reducing the output power or current based on the ambient temperature and desired reliability level.
Use a systematic approach to troubleshoot, checking input voltage, output voltage, and current. Verify proper installation, wiring, and thermal management. Consult the datasheet and application notes for specific guidance on troubleshooting and fault detection.
The VHB100W-Q48-S24 module is certified to UL 60950-1, EN 60950-1, and IEC 60950-1 standards. It also meets the requirements for CE marking and RoHS compliance. Verify the specific certifications and approvals for your region and application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
VHB100W-Q48-S24 Overview

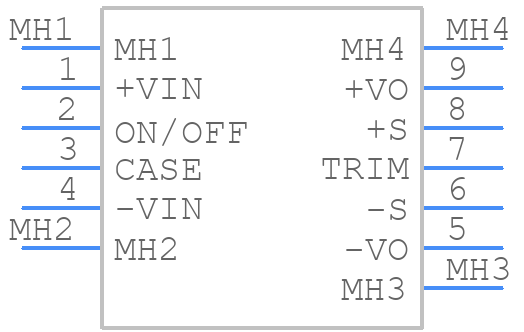

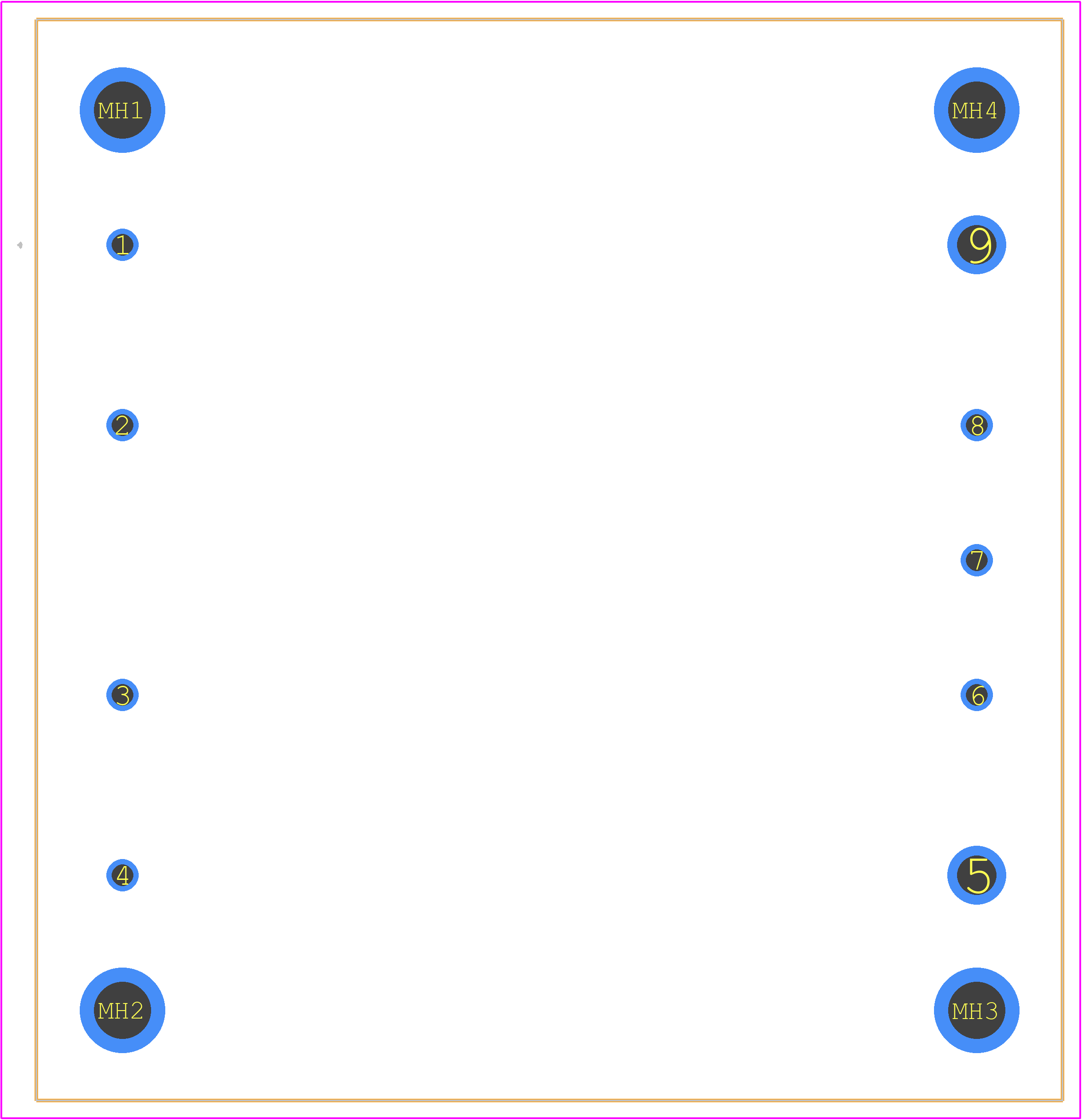

Use the download button to access the VHB100W-Q48-S24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VHB10,
or try a keyword search, such as Power Supply Modules
