VI-220-IW - VICOR

Description: Isolated DC/DC Converters 100W 36 Vin 5Vout I Grade

Download VI-220-IW Model

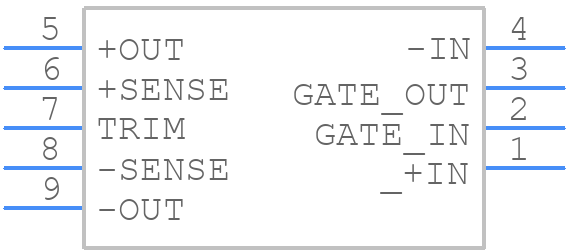

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

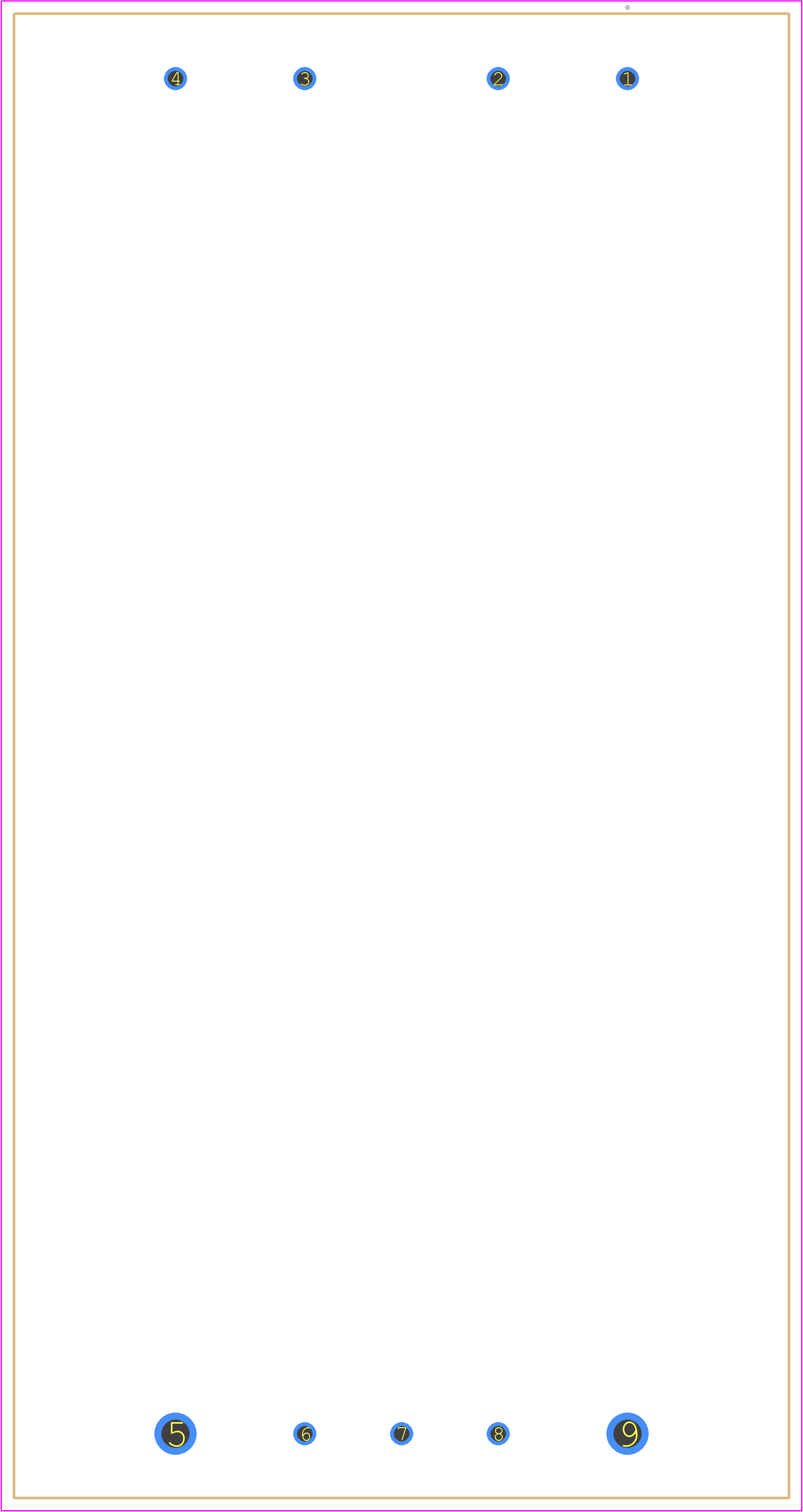

VI-220-IW - VICOR PCB footprint - Other - Other - VI-220-IW-1
click to zoom
3D Models
VI-220-IW - VICOR  - 3D model - Other - VI-220-IW-1
click to zoom

VI-220-IW Details

  • Manufacturer Part Number:

    VI-220-IW

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    PACKAGE-9

  • Pin Count:

    9

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    5

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    56 V

  • Input Voltage-Min:

    21 V

  • Input Voltage-Nom:

    36 V

  • JESD-30 Code:

    R-XDFM-P9

  • JESD-609 Code:

    e0

  • Length:

    116.8 mm

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    2.5 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    100 W

  • Trim/Adjustable Output:

    YES

  • Width:

    61 mm

VI-220-IW Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the VI-220-IW is -40°C to +100°C, with derating above 85°C.
  • Proper thermal management can be achieved by providing adequate airflow, using a heat sink, and ensuring that the device is mounted on a thermally conductive surface.
  • The recommended input voltage range for the VI-220-IW is 36V to 60V, with a maximum input voltage of 62V.
  • Yes, the VI-220-IW is designed to meet the requirements of high-reliability and military applications, with options for screening and testing available.
  • The VI-220-IW can be configured for a specific output voltage using external resistors to set the output voltage, as described in the datasheet.
