VI-ARM-C11 - VICOR

Description: AC/DC Power Modules ARM C 500W SP SLOT

Download VI-ARM-C11 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

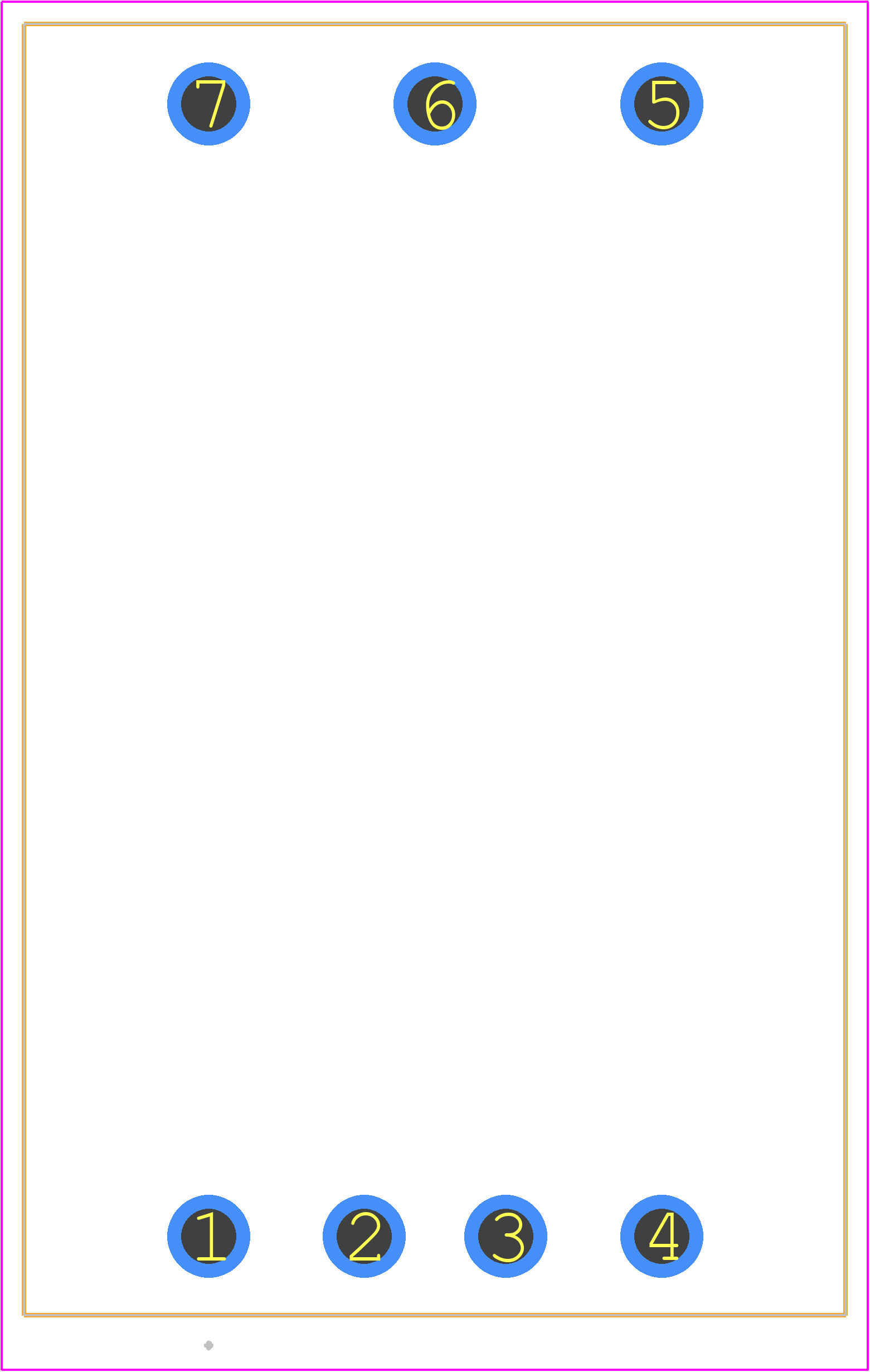

VI-ARM-C11 - VICOR PCB footprint - Other - Other - VI-ARM-C11-2
click to zoom
3D Models
VI-ARM-C11 - VICOR  - 3D model - Other - VI-ARM-C11-2
click to zoom

VI-ARM-C11 Details

  • Manufacturer Part Number:

    VI-ARM-C11

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    PACKAGE-7

  • Pin Count:

    7

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    5

  • Additional Feature:

    500W POWER IN DOUBLER MODE; 180 TO 264VAC INPUT, 750W POWER IN BRIDGE MODE

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    264 V

  • Input Voltage-Min:

    90 V

  • Input Voltage-Nom:

    120 V

  • JESD-30 Code:

    R-XDFM-P7

  • JESD-609 Code:

    e0

  • Length:

    57.91 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Voltage-Max:

    375 V

  • Output Voltage-Min:

    200 V

  • Output Voltage-Nom:

    230 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    750 W

  • Trim/Adjustable Output:

    NO

  • Width:

    36.83 mm

VI-ARM-C11 Frequently Asked Questions (FAQs)

  • Vicor recommends a 2-layer PCB with a solid copper plane on the bottom layer for heat sinking, and a minimum of 2 oz copper thickness. Additionally, a thermal relief pattern around the device's thermal pads is recommended to ensure good thermal conductivity.
  • Vicor recommends following the recommended PCB mounting and screw torque specifications, and using a conformal coating to protect the device from environmental factors. Additionally, the device's thermal interface material should be securely attached to the heat sink to prevent thermal interface resistance increase due to vibration.
  • The maximum allowed input voltage ripple is 10% of the nominal input voltage, with a maximum deviation of ±1V. Exceeding this limit may affect the device's reliability and performance.
  • Check the input voltage, output load, and ambient temperature to ensure they are within the specified operating ranges. Verify that the device is properly soldered and mounted, and that the thermal interface material is properly applied. If issues persist, consult Vicor's application notes and technical support resources for further guidance.
  • Vicor recommends using a combination of common-mode chokes and X-capacitors to filter out electromagnetic interference. A pi-filter configuration with a common-mode choke, X-capacitors, and Y-capacitors can be used to achieve optimal EMI performance.
